What is the time limit for Worldsoaring CNC milling small batch parts?

Material properties

Aluminum alloy/brass: 3-5 days (easy to cut, high efficiency)

Stainless steel/titanium alloy: 5-7 days (requires reduced speed processing, tool loss management)

Process complexity

Simple structure (such as plane/drilling): 1-3 days

Precision features (such as micro gears/curved surfaces): 5-7 days (including multiple calibrations)

Post-processing requirements

Basic deburring: +0.5 days

Anodizing/electroplating: +2-3 days (outsourcing process)

Worldsoaring expedited service can be compressed to 24-48 hours. Rapid prototyping sends samples and small batches.

What are the design techniques for CNC milling small batch parts?

To efficiently achieve the rapid delivery of small batch CNC milling parts, CAD model design alone is far from enough. The key lies in an in-depth understanding of material properties, processing process boundary conditions and industry-verified best practices. This includes, but is not limited to, engineering knowledge systems such as tool path optimization strategies (such as adaptive milling), critical wall thickness design specifications (aluminum alloy ≥ 0.8mm), minimum spacing criteria between features, etc. These factors together determine the dimensional accuracy (up to IT7 level), surface quality (Ra0.8μm or less) and batch consistency (CPK≥1.33) of the final product.

In this discussion, we will provide a series of practical design tips to help engineers and designers master the knowledge of optimizing CNC milling process design. Once you start following these tips, you can improve manufacturability and reduce production obstacles. So, let's continue to learn how to improve the design level of CNC milling small batch parts.

In this technical guide, we will systematically analyze the core elements of CNC milling process design and provide engineers with a production-proven optimization methodology. By implementing these key technical points (including 12 DFM criteria and 8 types of process trap avoidance solutions), you will be able to:

Improve the design manufacturability index (DFM Score) by 40%, shorten the processing cycle by 15-25%

, and reduce the defective rate to less than 3‰

Feature topology optimization/intelligent tool path planning/scientific allocation of tolerance bands/realize seamless transformation of small batch precision parts from design to mass production.

Analysis of key design elements for CNC milling small batch parts?

In small batch CNC milling, design quality directly affects cost-effectiveness, processing efficiency and finished product quality. The following is a systematic analysis of key design elements:

1. Cost-optimized design

Maximize processing efficiency

1: Follow the DFM (design for manufacturing) principle to avoid special tool requirements

2: Standardized feature design can reduce processing time by more than 30%

3: Material utilization improvement plan reduces 15-20% of raw material waste

Economic balance

1: Precious metal parts use topological optimization structure

2: Centralized layout of complex features reduces tool change frequency

Well-thought-out design will fully consider the limitations and capabilities of CNC machining. This helps to minimize processing time, reduce material waste, and avoid the use of complex and expensive tools.

2. Precision and quality assurance

Tolerance control system: 0.02mm process allowance is reserved for key mating surfaces, and non-critical dimensions are controlled according to ISO 2768-mK level

Surface integrity management: Tool path optimization achieves Ra0.8μm surface roughness, and cutting parameters and material hardness matching plan

CNC machining is known for its precision, but to achieve strict tolerances, careful design is required. Design considerations affect the degree to which these tolerances are met.

Design affects the achievable surface finish. Factors such as tool path and material selection will have an impact.

3. Agile manufacturing advantages

Fast iteration capability: Modular design supports design changes within 72 hours, and the trial production-verification cycle is compressed to 5 working days

Risk control mechanism: Small batch verification finds 90% of potential defects in advance, and digital simulation reduces the cost of physical trial and error

Small batch CNC machining is ideal for prototyping and testing designs. Good design can be quickly iterated and modified. Efficient design can simplify the manufacturing process, shorten the delivery cycle, and speed up the product to market.

CNC milling core design specifications

1. Internal angle design criteria

Technical background: Tool geometry limitation: Φ4mm end mill produces R2mm theoretical corner radius, stress concentration factor: stress at sharp corners increases 3-5 times

Solution:

Failure case: Using Φ0.5mm tool to try right-angle processing resulted in: tool breakage rate increased by 80%, single-piece processing time increased by 400%

Small batch production allows the design to be tested and verified before mass production. This helps to detect and correct potential problems as early as possible.

Small batch production allows for rapid design changes to adapt to market changes or correct design defects found in early production runs.

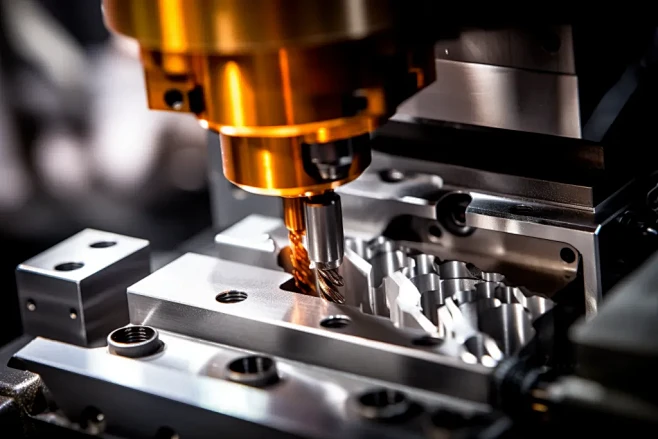

Practical design tips for CNC milling small batch parts

Below we will share practical design tips (DFM) for small batch CNC milling. These proven optimization solutions can effectively improve the processing quality and production efficiency of CNC milling parts

Avoid sharp internal corners

In the design of CNC milling parts, sharp internal corners must be avoided. Due to the cylindrical geometry of the milling cutter itself, it is impossible to form a perfect sharp corner during processing - the radius of the internal corner should be at least equal to the radius of the milling cutter used. Reasonable internal corner design can not only improve machining efficiency, but also avoid stress concentration and extend the service life of parts

Limitations of tool geometry

CNC milling uses rotary cutting tools for machining. The circular cutting edge characteristics determine that the machined internal corners must have arc radii. Even if the design requires theoretical sharp corners, the actual formed internal corners will still retain the transition radius corresponding to the tool diameter

Challenges and consequences of sharp corners

Attempts to create sharp internal corners usually require very small cutting tools. These tools are more fragile, easy to break, and will lead to reduced material removal rates, thereby increasing machining time and costs.

In order to achieve nearly sharp corners, special tools, additional machining processes and potential manual finishing are required, which greatly increases production costs.

From an engineering perspective, sharp corners are stress concentration points. This means that when the part is subjected to force, stress will be concentrated on these sharp corners, increasing the risk of failure.

When machining internal corners, changing the direction of the cutting tool may cause chip re-cutting, excessive tool engagement and difficulty in chip evacuation. These problems will negatively affect the surface finish and overall quality of the machined parts.

Best Practices

The most effective solution is to design internal corners with radii from the beginning. This not only simplifies machining, but also improves the structural integrity of the part. Maintaining a consistent radius throughout the part minimizes the need for tool changes, further streamlining the manufacturing process.

Prioritize the use of internal corner designs with radius

Actively designing internal corners with reasonable radius can achieve the following at the same time:

✓ Improve machining efficiency (avoid tool overload)

✓ Enhance part reliability (reduce stress concentration)

✓ Simplify process flow (unified radius reduces tool change times)

Alternatives to sharp corner requirements

When the structure does require sharp corners, consider:

• Electrospark machining (EDM) - can achieve a corner radius of ≤0.1mm

• Design compromise - adjust the tolerance of mating parts

• Feature optimization - use "dog bone" avoidance angle (as shown in the figure)

Key technical points:

1 Standard milling minimum corner radius ≈ tool radius × 1.2 (including machining allowance)

2 "Dog bone" design must ensure that the effective contact surface is ≥ 70% of the mating area

Optimal wall thickness recommendation

For small batch parts milled by CNC, the optimal wall thickness is a critical design consideration that directly affects structural integrity, manufacturability and cost. Here is a detailed look at the importance of wall thickness and how to determine the right size:

Importance of Sufficient Wall Thickness

Structural Integrity

Thin walls are inherently weaker and more susceptible to deformation under stress. This is especially important for parts that are subject to loads or vibration.

Insufficient wall thickness can lead to premature failure, compromising the function and reliability of the part.

Processing Stability

During the CNC milling process, cutting forces can cause thin walls to vibrate or deform. This can result in dimensional inaccuracies, poor surface finish, and even tool breakage.

Sufficient wall thickness provides the rigidity to withstand these forces, ensuring precise and consistent machining.

Material Properties

The optimal wall thickness depends on the material used. Softer materials such as aluminum or plastic may require thicker walls than harder materials such as steel or titanium.

Understanding the strength, stiffness, and machinability of a material is essential in determining the right wall thickness.

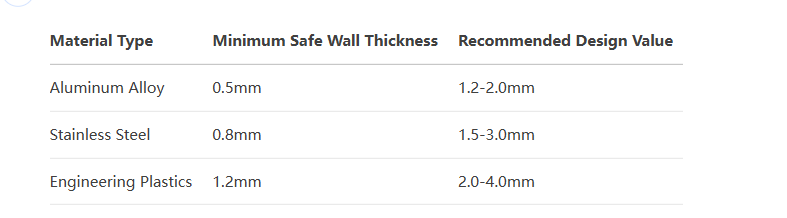

General Guidelines and Recommendations

Here are some general CNC milling design guidelines and recommendations for CNC milling of various materials -

Metals

For most metals, a minimum wall thickness of 0.8 mm is generally recommended. This provides a good balance between strength and machinability. However, for larger parts or parts subject to high loads, thicker walls may be required.

Plastics

Plastics are more flexible than metals, so thicker walls are often required. A minimum wall thickness of 1.5 mm is a good starting point. The specific type of plastic will also affect the optimal wall thickness. Some plastics are more brittle than others and may require thicker walls.

Factors to Consider

Part Size and Geometry: Larger parts and parts with complex geometries may require thicker walls to maintain structural integrity.

Loads and Stress: Parts subject to high loads or stresses require thicker walls to prevent deformation or failure.

Material Properties: The strength, stiffness, and machinability of a material will affect the optimal wall thickness.

Machining Processes: Specific CNC milling processes and tools will also affect the minimum achievable wall thickness.

Vibration: Thin walls can vibrate during machining, resulting in a poor surface finish.

Practical Considerations

To avoid costly modifications later, factor adequate wall thickness into your design from the beginning.

Consider the required wall thickness and choose a material with the strength and stiffness required for the application.

For critical applications, please consider prototyping and testing to verify the design and ensure adequate wall thickness.

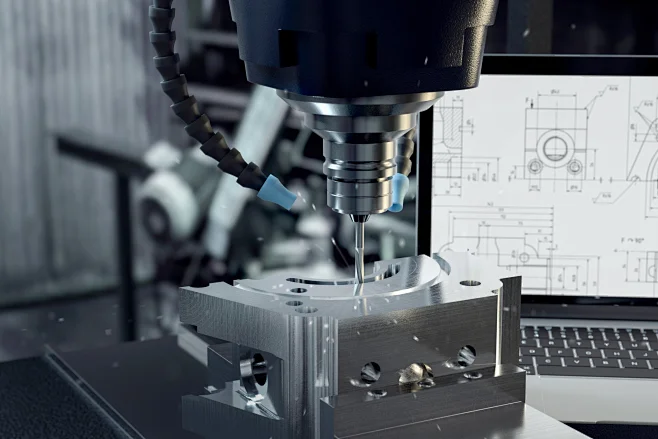

 Best Practices for File Preparation

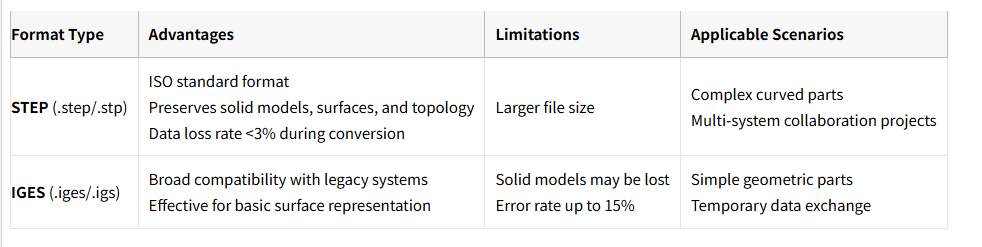

 Format Selection Guide

Key Recommendations:

• Prioritize STEP 242 version (AP242)

• Perform "Geometric Integrity Check" before export

• Avoid using neutral formats for tolerance data transfer

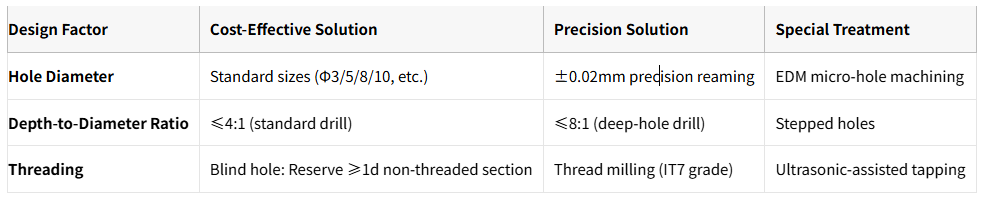

Engineering Standards for Hole Design

 Design Decision Matrix

Cost Optimization Strategies

Tool Standardization: Use JB/T 10231.1 standard drill series

Tolerance Design:

• Positioning holes: H7 grade

• Clearance holes: Shaft diameter +0.2mm

• Machining Processes:

• For Φ<1mm holes: Laser machining recommended

• High-precision holes: "Drill-Ream-Hone" process flow

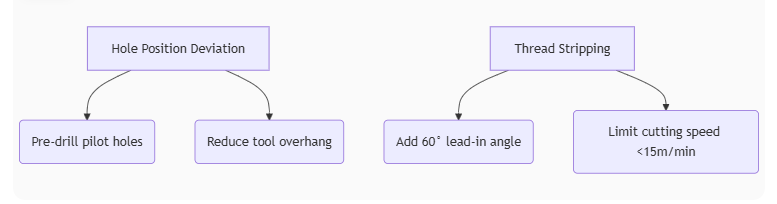

 Common Defect Prevention

 Special Structure Treatment

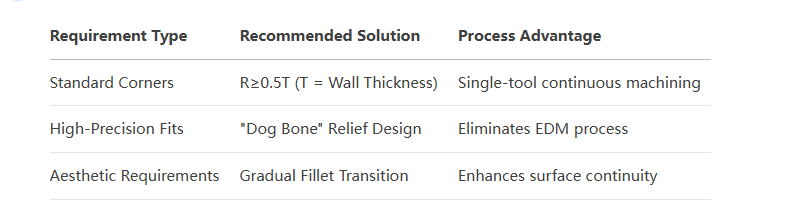

Sharp Corner Alternatives

EDM Machining: Corner radius controllable at R0.1-R0.3mm

  Dog Bone" Design:

• Maintain effective contact width ≥30% of hole diameter

• Transition arc radius R≥1.5t (material thickness)

Q: What are the advantages of using CNC milling for small batch orders?

A: CNC milling is an ideal choice for small batch orders. It can achieve rapid production without molds and flexibly respond to design changes. It can significantly reduce the initial cost by 50-80% while ensuring precision quality. It is particularly suitable for the production of medium and high complexity parts of 50-500 pieces.

Q: How long does it take for Worldsoaring to produce small batch orders?

A: Worldsoaring's small batch CNC milling orders can usually be delivered within 5-7 working days. The specific cycle depends on the complexity of the part and the characteristics of the material. We provide an expedited 48-hour service option.

Q: What is the minimum order quantity for Worldsoaring's small batch orders?

A: The minimum order quantity for Worldsoaring's small batch CNC processing orders is 1 piece, which is suitable for product development and small-scale production needs.

Q: What industries can Worldsoaring process small batch orders?

A: Worldsoaring specializes in small-volume CNC processing orders for industries such as aerospace, medical equipment, automotive parts, electronic communications, and precision molds. We are particularly good at manufacturing high-precision, complex-structure metal and engineering plastic parts.
