This is a fundamental question in CNC machining. CNC milling and CNC turning are the two most dominant subtractive manufacturing processes, and understanding their differences is crucial for selecting the right manufacturing method.
I will explain this to you through a detailed comparison and a practical selection guide.
The Core Differences Between CNC Turning and CNC Milling
CNC Turning: The workpiece rotates while the cutting tool remains stationary. It is suitable for creating cylindrical or spherical parts.
Think of a potter's wheel: The clay (workpiece) spins on the turntable, and your hands (cutting tool) shape it into a round form.
CNC Milling: The cutting tool rotates while the workpiece remains stationary. It is suitable for creating prismatic (angular) parts or parts with complex contours.
Think of carving: The carving tool (rotating cutter) moves across the wood (stationary workpiece) to carve out various shapes and patterns.
Feature CNC Turning CNC Milling Comprehensive Comparison Table
Working Principle Workpiece rotates; tool moves along linear axes to cut Tool rotates; workpiece is fixed to a table; tool moves along multiple axes
Primary Machinery CNC Lathe, Turning Center CNC Milling Machine, Machining Center
Typical Geometry Axisymmetric parts (round, conical, threaded) Non-axisymmetric parts (flat surfaces, slots, gears, complex 3D surfaces)
Primary Operations Facing, OD/ID Turning, Boring, Grooving, Threading Face Milling, Contour Milling, Pocketing, Drilling, Tapping
Advantages Extremely fast and cost-effective for axisymmetric parts, excellent surface finish Extreme flexibility, can create highly complex geometries, one-stop multi-face machining
Limitations Limited to axisymmetric parts; cannot machine complex features Setup can be more complex; less efficient than turning for removing large volumes of material
Common Products Shafts, bushings, bolts, nuts, flanges, piston rods Engine blocks, molds, gearboxes, medical implants, phone cases
How to Choose? A Practical Decision Guide

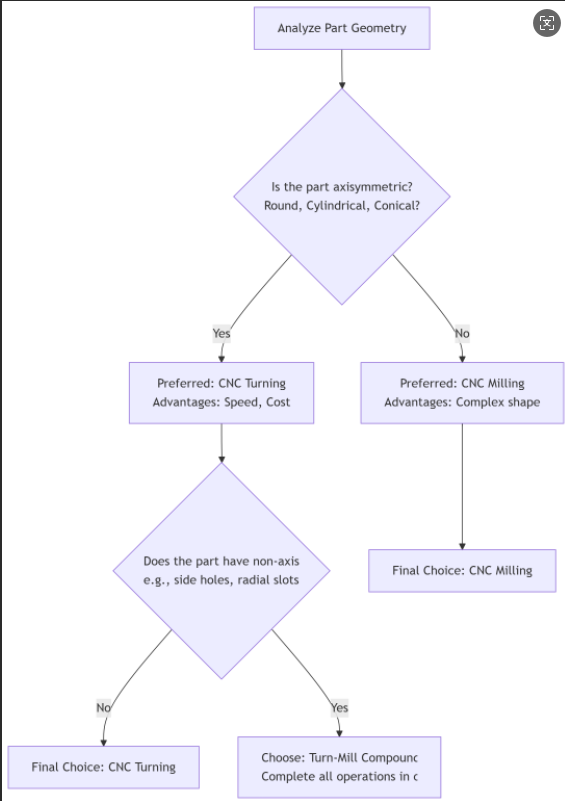

Choosing between turning and milling depends primarily on your part design, budget, and timeline requirements. You can follow this decision flowchart to make the best choice:
The chart above clearly outlines the decision path based on geometry. Here is a detailed explanation of each decision point:
1. Examine the Overall Part Geometry (The Key Factor)
Choose CNC Turning if: Your design is primarily cylindrical, conical, or round. For example, you need to produce screws, shafts, bushings, or flanges. Turning is the most efficient and economical method for these shapes.
Choose CNC Milling if: Your design is block-like, plate-like, or has complex 3D surfaces. For example, you need to make engine components with pockets, holes, complex contours, molds, or enclosures. Milling offers unparalleled flexibility and capability.
2. Consider Feature Complexity (Combined Processes)
Many parts aren't purely turnable or millable. For instance, a shaft (a turning part) might need a radial hole drilled or a keyway milled (milling operations).
For such complex parts, the best options are:
Sequential Processing: Perform turning first, then milling. This requires two setups, which can increase costs and error stacking.
Turn-Mill Compound Machining: Use an advanced Turn-Mill Compound Center. A single machine can perform turning, milling, drilling, tapping, and more. It achieves "complete machining in a single setup," greatly improving accuracy, efficiency, and reducing setup time. This is the trend in modern precision manufacturing.
3. Evaluate Budget and Volume
Prototypes / Low Volume: If the budget is limited and the part is axisymmetric, turning is usually cheaper. For complex prototypes, milling or 3D printing might be more suitable.
High-Volume Production: While turning has a lower unit cost for simple parts, turn-mill compounding can offer a better total cost advantage for complex parts at high volumes by reducing setups and improving overall efficiency and accuracy.
Conclusion
Need to make wheels, shafts, or pins? Choose CNC Turning.
Need to make gears, molds, or enclosures? Choose CNC Milling.
Need to make a turned part with milled features? (e.g., a shaft with a keyway) Prioritize Turn-Mill Compound Machining.
If you are unsure how to choose, the best practice is to send your 3D CAD model to a professional manufacturer like WSRCNC. Their engineers will provide Design for Manufacturability (DFM) feedback and recommend the most economical and efficient process flow.
