For design engineers, making the right decision between 3D printing and CNC machining early in a project is crucial. Making the wrong choice not only wastes resources and time, but may also result in a product that doesn't meet the requirements of the final application.
To accurately determine whether subtractive or additive manufacturing is suitable for a project, a clear understanding of their technical principles, material compatibility, machining tolerances, and the applications in which each approach excels is crucial.
This article aims to systematically assist you in your technology selection decision. We will first explain the fundamental principles of the two processes, then compare several key performance indicators. Finally, through practical application cases, we will provide clear guidance and recommendations for your selection.

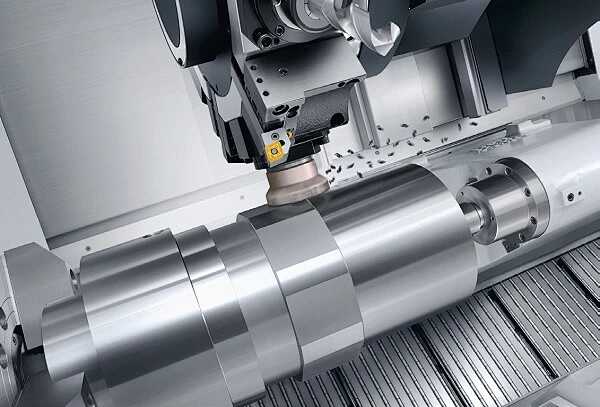

What is CNC machining?
CNC technology is a revolutionary upgrade to traditional manual manufacturing. In 1952, a research team at the Massachusetts Institute of Technology successfully developed the world's first CNC milling machine, marking the official launch of this technology.
CNC machining is a subtractive manufacturing technology based on digital models. A programming system drives the machine to cut solid material into a predetermined shape. This process relies on G-code and M-code for automated control and encompasses a variety of processes, including milling, turning, drilling, and grinding. Each process requires specialized tools and targeted machining strategies to meet diverse manufacturing needs.
CNC Machining Advantages and Disadvantages Comparison
| Dimension | Advantages | Disadvantages |
|---|---|---|
| Precision & Quality | High Dimensional Accuracy: Capable of holding strict tolerances. Excellent Surface Finish: Produces smooth, high-quality surfaces directly from the machine. | - |
| Production Efficiency | High Scalability: Efficiently and cost-effective for large-scale production runs. | High Initial Investment: Significant costs for tools, fixtures, and machine setup. |
| Material Application | Wide Material Compatibility: Excellent compatibility with a vast range of metals and plastics. | Lower Material Utilization: As a subtractive process, it generates more material waste (chips). |
| Process Characteristics | Mature and Stable Process: Offers high reliability and part-to-part consistency. | Geometric Restrictions: Part geometry (e.g., internal sharp corners) can be limited by tool access and shape. |
Key Points: CNC machining is a manufacturing technology that excels in precision, quality, and batch consistency. However, its advantages come at the cost of higher initial costs and material loss. When choosing a method, consider weighing its superior machining capabilities against cost-effectiveness.

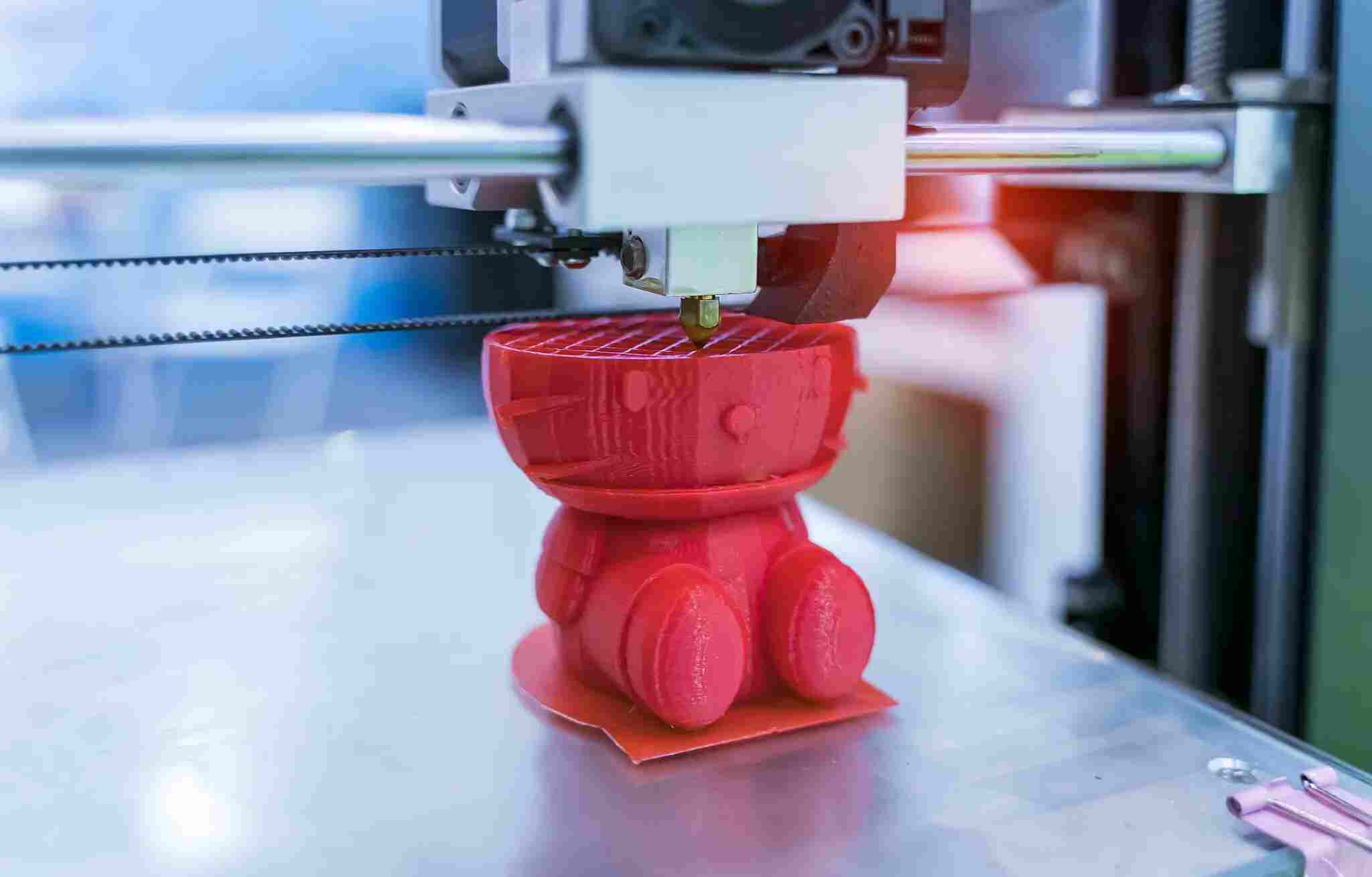

What is 3D Printing (3PD)?
3D printing, also known as additive manufacturing, emerged in the 1980s. Its core principle, in contrast to subtractive manufacturing, is to build physical objects by depositing materials layer by layer.
The easiest way to understand 3D printing is to start with fused deposition modeling (FDM). The principle is that a thermoplastic filament is heated and melted, extruded through a moving nozzle, and deposited layer by layer along a pre-set path. As each layer cools and solidifies, new layers are added, and the cycle repeats until the final object is formed. Just as CNC machining offers a variety of processes, 3D printing technologies are equally diverse, differing primarily in their material handling methods. Among the more prominent are FDM (material extrusion), SLS (laser sintering powdered materials), SLA (photocurable liquid resin), and DMLS (laser sintering metal powdered materials).
3D Printing (Additive Manufacturing) Advantages and Disadvantages Comparison
| Category | Advantages | Disadvantages |
|---|---|---|
| Design & Prototyping | ✅ High Design Flexibility: Easily creates complex geometries and internal structures. ✅ Low Prototyping Cost: No specialized molds needed, significantly reducing trial production costs. ✅ Rapid Turnaround: Short cycle from design to physical part, accelerating iteration. | ❌ Mechanical Limitations: Parts often exhibit weak interlayer bonding and distinct anisotropy, resulting in lower mechanical strength compared to traditionally manufactured parts. |
| Material & Cost | ✅ High Material Utilization: Uses only the material required for the build, minimizing waste. | ❌ Lower Dimensional Accuracy: Suffers from layer-stacking errors and shrinkage, making it difficult to achieve CNC-level tolerances. |
| Suitable Applications | Ideal for prototype validation, small-batch customization, and complex, lightweight structures. | Not yet suitable for high-precision assembly components or functional parts requiring high strength, durability, and thermal resistance. |
3D printing offers significant advantages in enabling design freedom, accelerating prototyping, and controlling initial costs. However, it still has limitations in terms of precision, strength, and durability. It is ideal for prototyping and manufacturing complex structures, but not a complete replacement for high-precision functional parts.
3D Printing vs. CNC Machining: A Complete Analysis of the Core Differences
The preceding introduction may still leave you wondering: How should you choose for your specific project? The answer lies in the core differences between 3D printing and CNC machining—from workflow and cost structure to final part performance. Now, let's put these two technologies head-to-head for a comprehensive, direct comparison to make your choice clear.
CNC Machining vs. 3D Printing: Comprehensive Comparison
| Comparison Aspect | CNC Machining | 3D Printing |
|---|---|---|
| Workflow | Requires professional fixturing and programming; complex setup; automated machining process. | Extremely simple setup; fully automated operation after printing starts, no supervision needed. |
| Material Compatibility | Wide range: Compatible with metals (steel, titanium, aluminum, brass) and engineering plastics. | Limited: Primarily thermoplastics like PLA, ABS, nylon; industrial-grade machines can handle specialty resins or metal powders. |
| Tolerance & Precision | Very High: ±0.015–0.025 mm, suitable for precision parts. | Lower: FDM: ±0.2–0.5 mm, SLS/Binder Jetting: ±0.2–0.3 mm, suitable for applications with less strict precision requirements. |
| Geometric Complexity | Restricted: Complexity limited by tool access and fixturing constraints. | Extreme Freedom: Can easily create complex internal structures, organic shapes, and integrated assemblies. |
| Typical Part Size | Large: Up to 4000×1500×600 mm (example from wsrcnc). | Medium: Common FDM printers max around 1000×1000×1000 mm. |
| Surface Finish | Very Smooth, excellent surface quality often directly achievable. | Visible Layer Lines, typically requires post-processing for a smooth finish. |
| Setup Cost | High: Professional CNC equipment typically starts at $100,000+. | Flexible: Desktop printers from around $500; industrial-grade systems can reach $100,000. |
| Cost Per Part | High for low volumes, but cost-effective for mass production. | Highly cost-effective for small batches, ideal for prototypes and customized production. |
CNC machining excels in precision, surface quality, and material strength, making it suitable for high-volume, high-precision metal or durable part manufacturing. 3D printing, on the other hand, boasts unparalleled design freedom and extremely low prototyping costs, making it ideal for rapid prototyping, low-volume customization, and the manufacture of complex geometries.
Eight Core Differences Between CNC Machining and 3D Printing
1. Production Workflow
Both methods begin with a 3D CAD design, which is converted into machine-readable instructions via software.
The differences begin at the execution stage. CNC machining requires a specialized operator to set up the process, including clamping the workpiece and selecting and installing the cutting tool, although the subsequent cutting process itself is automated.
In contrast, 3D printing setup is much simpler. Once printing begins, the entire build process is fully automated, typically requiring no human intervention.
2. Material Compatibility
Both technologies can process a wide range of materials, but each has its own strengths.
CNC machining dominates the metalworking world, processing materials including steel, brass, titanium, aluminum, and various engineering alloys. It is particularly well-suited for applications requiring extreme strength, durability, and heat resistance. 3D printing primarily utilizes plastics such as PLA, ABS, nylon, and ULTEM. However, advanced technologies such as SLS, binder jetting, and SLM can also process aluminum, steel, titanium, and biocompatible metals.
3. Dimensional Tolerance
CNC machining offers significant advantages in terms of precision.
CNC machining typically maintains a tight tolerance range of ±0.015–0.025 mm, depending on the machine type and process.
3D printing, on the other hand, has relatively loose tolerances: approximately ±0.2–0.5 mm for FDM, ±0.3 mm for SLS, and ±0.2 mm for binder jetting.
4. Geometry and Part Size
The two complement each other in terms of design freedom and part size.
CNC machining is limited by the physical accessibility of tools and fixtures, and must adhere to specific design guidelines, such as minimum wall thickness and internal fillets. However, its advantage lies in its ability to produce large parts. For example, WSCNC's five-axis machine tool can handle workpieces up to 4000 x 1500 x 600 mm.
3D printing, on the other hand, is virtually unlimited in terms of geometry and can easily produce complex organic shapes and internal cavity structures. However, part size is limited by the machine's build volume, with mainstream FDM technology typically achieving a maximum build size of around 1000 x 1000 x 1000 mm.
5. Surface Finish
CNC machining uses sharp tools to continuously cut, directly producing a very smooth surface.
3D printing, due to its layer-by-layer manufacturing method, leaves visible grain on the part surface, often resulting in slight texture even at high-precision settings.
6. Setup Cost
The two technologies differ significantly in terms of initial investment.
CNC machining is a typical industrial-grade investment, with the cost of a professional CNC machine typically starting at $100,000, not including expensive tooling, fixtures, and supporting equipment. The entry barrier for 3D printing is much lower, with desktop printers starting at around $500, and industrial-grade equipment ranging from several thousand to over a hundred thousand dollars.
7. Cost per Part
Cost-effectiveness varies depending on the production volume.
For small-batch production, 3D printing often offers a more competitive price per part due to its significantly lower tooling and setup costs.
However, in large-scale production, once the initial setup is complete, CNC machining's efficient cycle time and stable production capacity significantly reduce the cost per part, making it more economical.
8. Post-Processing and Supply Chain (New)
The two approaches differ in terms of post-processing and supply chain models for finished parts.
CNC machined parts are typically dense and solid in their final state, often ready for immediate use or requiring only simple deburring, sandblasting, or other processing. Their supply chain seamlessly integrates with traditional manufacturing.
3D-printed parts often require a series of post-processing steps to enhance performance or appearance, such as support removal, sanding, curing, or metal infiltration. Its on-demand, distributed production capabilities also provide greater flexibility for supply chain management.
CNC machining vs. 3D printing: How to choose the right technology for your project?
The ultimate technology choice depends on the specific needs of the project. The decision between CNC machining and 3D printing should be made after comprehensively evaluating design complexity, material requirements, precision standards, and budget.
CNC machining should be preferred in the following situations:
Volume production: Medium to large production runs are required.
Metal parts: Parts are made from common metal materials such as steel, aluminum, brass, or titanium.
High precision requirements: Designs require tight dimensional tolerances.
Functional end-use components: Parts must withstand thermal stress, mechanical loads, or wear under real-world conditions.
Excellent surface quality: A smooth finish is desired directly after machining, minimizing post-processing.
3D printing is a better choice in the following situations:
Prototyping: Rapid iteration of product prototypes is required, especially for plastic prototypes.
Complex geometries: Designs incorporate complex cavities, lattices, or organic forms, features that are difficult to achieve with traditional machining. Specialty Materials: Materials that are difficult or expensive to cut, such as certain composites or high-performance polymers, need to be used.
Fast and Low-Cost Prototyping: Individual or small-batch parts need to be produced quickly, while avoiding expensive tooling investments.
Design Drives Performance: Part performance can be achieved through structural optimization, rather than relying solely on the inherent strength of the material.
If both technologies are suitable, the final decision should be based on a comprehensive trade-off between total cost, lead time, and quality requirements. Especially when manufacturing metal prototypes, CNC machining often offers cost-performance advantages over metal 3D printing.
How can wsrcnc help?
As we've seen, CNC machining and 3D printing each have their advantages and can play a key role in the manufacturing process depending on project requirements. Regardless of your needs, wsrcnc offers specialized manufacturing solutions.
In the CNC machining sector, we offer services covering CNC milling, turning, five-axis machining, and precision component manufacturing for demanding industries like aerospace. We strive to achieve high tolerances of ±0.001 inches, offer over 100 metal and engineered plastic materials, and provide over 20 surface finishes to perfectly meet your design and functional requirements.
Our 3D printing services are equally comprehensive, supporting a variety of mainstream and industrial-grade processes, including SLA, SLS, HP MJF, and SLM. This is backed by our global network of over 300 professional printing partners and supplemented by specialized post-processing processes to ensure your printed parts meet end-of-life standards for accuracy, strength, and aesthetics, ensuring a seamless transition from file to finished product.
If you have a specific project and are struggling to decide between 3D printing and CNC machining, contact our expert team today. We'll provide clear technology selection advice and instant quotes to help you make the most informed decision.
