As a student navigating the world of mechanical engineering, I often find myself overwhelmed by various technical terms. Recently, while studying CNC machining centers, concepts like 3-axis, 4-axis, and 5-axis have left me both curious and confused. What exactly do they represent? What kind of leap in machining capabilities does an extra axis bring? Is it merely an added direction of movement, or does it fundamentally change the possibilities of machining? With these questions in mind, I decided to delve deeper, attempting to uncover the mysteries behind these 'axes' and understand the critical roles they play in modern manufacturing.

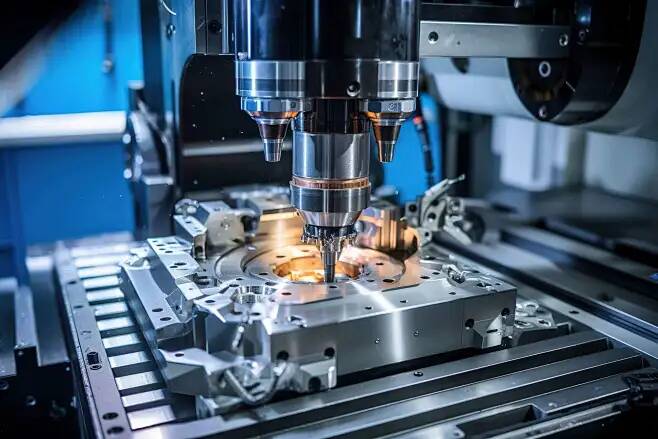

3-Axis Machining Center: Balancing Basics and Efficiency
Characteristics: The 3-axis machining center is the most common type of CNC machine, featuring three linear motion axes: X, Y, and Z. This means the cutting tool can only move along these three mutually perpendicular directions, while the workpiece typically remains fixed on the worktable. You can imagine it like a skilled sculptor meticulously carving on a flat surface.
Advantages:
•Cost-Effective: Both equipment investment and daily maintenance costs are relatively low, making it ideal for initial projects with limited budgets or educational practices.
•Relatively Simple Operation and Programming: For beginners, the programming logic and operational procedures of a 3-axis machine are easier to understand and master, serving as an excellent starting point for learning CNC machining.
•Broad Applicability: Despite its limited degrees of freedom, it can efficiently complete most planar machining and simple curved surface tasks, such as drilling, slot milling, and face milling.
Application Scenarios: If your project primarily involves machining parts with simple geometric shapes like cubes or rectangles, or requires planar machining of plates and molds, a 3-axis machining center is undoubtedly an economical and efficient choice.
4-Axis Machining Center: Enhanced Efficiency and Flexibility
Characteristics: Building upon the 3-axis design, a 4-axis machining center adds a rotational axis (typically A or B axis). This rotational axis allows the workpiece to rotate around the X or Y axis. This means the cutting tool can not only move in X, Y, and Z directions, but the workpiece itself can also 'turn,' enabling the tool to access the workpiece from more angles.
Advantages:
•Significantly Improved Machining Efficiency: The biggest advantage is the reduction in multiple workpiece setups. A single setup can complete machining on multiple sides of the workpiece, greatly saving time and labor costs.
•Expanded Machining Complexity: Capable of machining complex curved surfaces and features that are difficult for 3-axis machines, such as helical grooves and cams, offering more possibilities for design.
•Enhanced Machining Accuracy: Fewer setups directly reduce cumulative errors caused by repeated positioning, thereby improving the accuracy of the final part.
•Optimized Tool Usage: The cutting tool can perform cuts at more optimal angles, reducing tool wear and extending tool life.

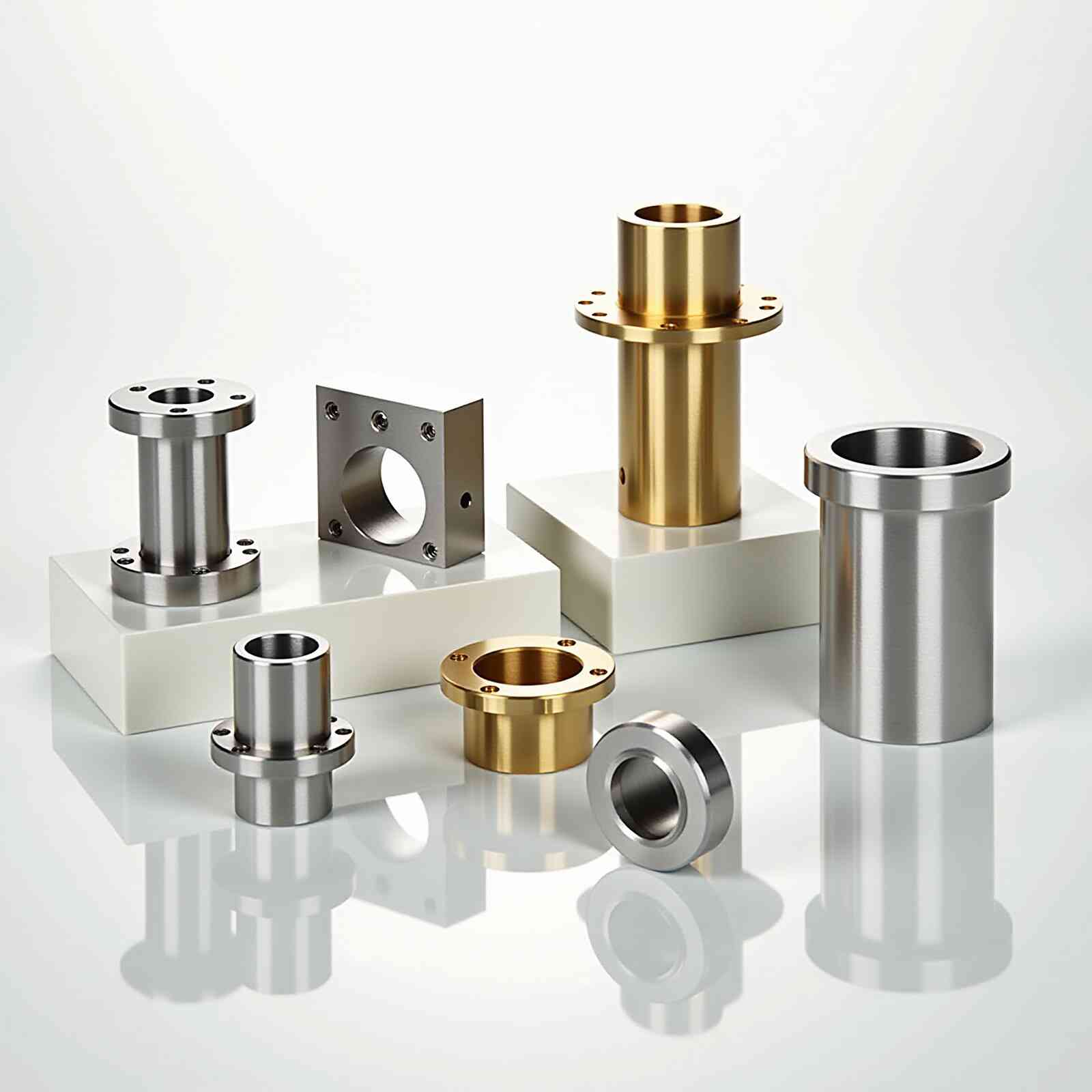

Application Scenarios: When your project requires machining parts with rotational symmetry, such as keyways or holes on shaft-like components, or multi-sided machining of impellers and gears, a 4-axis machining center will be your capable assistant. It is widely used in industries such as automotive, aerospace, and medical devices.
5-Axis Machining Center: The Pinnacle of Complexity and Precision
Characteristics: The 5-axis machining center is the 'all-rounder' in the field of CNC machining. It adds two rotational axes (typically A and C axes or B and C axes) to the 3-axis setup. This enables simultaneous联动 (coordinated movement) of the cutting tool and workpiece across five degrees of freedom, allowing the tool to approach the workpiece from virtually any angle, achieving true 'dead-angle-free' machining.
Advantages:

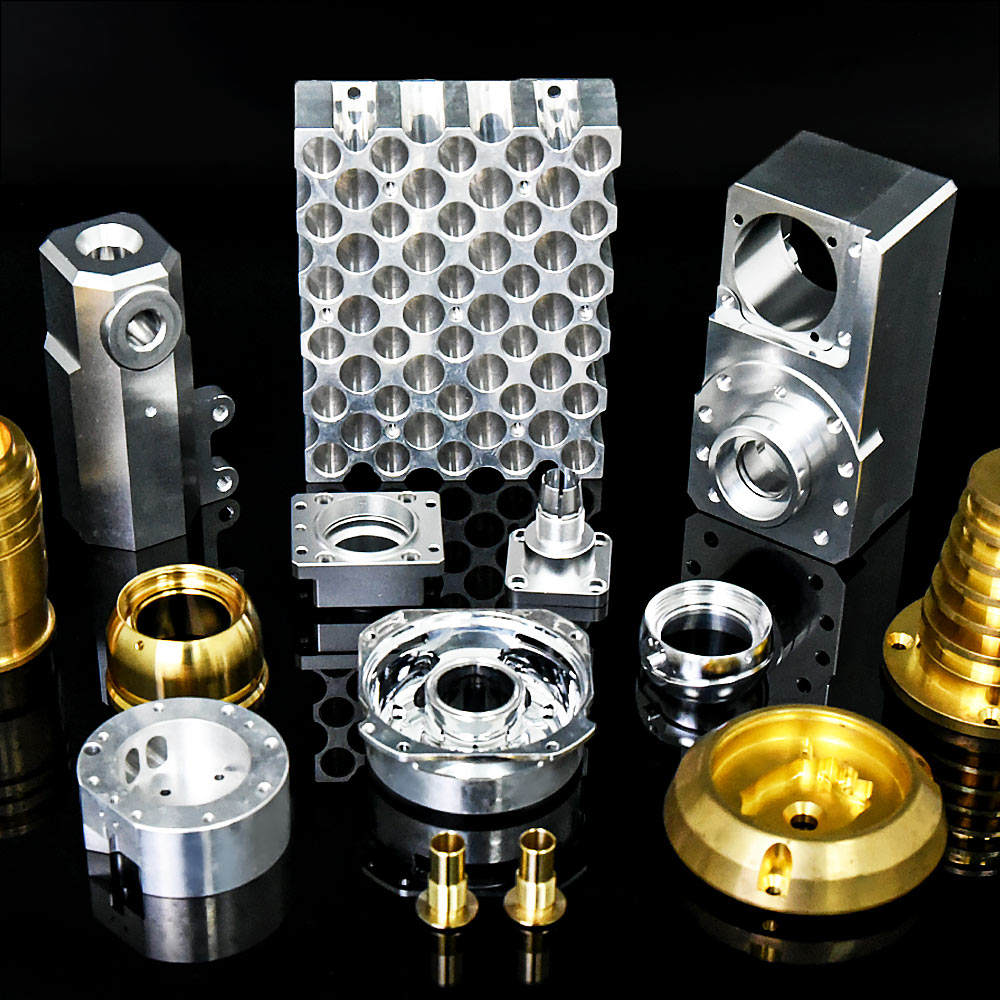

•Unparalleled Complex Surface Machining Capability: Capable of machining extremely complex spatial curved surfaces and irregular parts, such as turbine blades, human bone models, and high-precision mold cavities, it is crucial for realizing innovative designs.
•'One Setup, All Done': Greatly reduces or even eliminates the need for multiple workpiece setups, which means higher machining accuracy and efficiency, while avoiding errors caused by repeated clamping.
•Superior Surface Quality: The cutting tool can always maintain the optimal cutting angle, effectively avoiding tool interference, thereby achieving extremely high surface finish and reducing subsequent grinding and polishing work.
•Reduced Production Cycle: Decreases setup time and improves machining efficiency, which is significant for rapid prototyping and batch production of complex parts.
•Extended Tool Life: The cutting tool can operate in its most ideal posture, reducing unnecessary wear and further lowering production costs.
Application Scenarios: If your project demands extreme precision and complexity, such as impellers, blades, and airframe structural components in aerospace, artificial joints and implants in medical fields, or high-end mold manufacturing, then a 5-axis machining center is an indispensable choice. It represents the highest level of modern precision manufacturing.
How to Choose the Right 'Axis' for Your Project?
As a student, when faced with a specific project, choosing the appropriate machining mode requires considering the following aspects:
1.Part Geometric Complexity:
•Simple planar/shallow cavities: 3-axis is sufficient.
•Rotational features/multi-sided machining required: 4-axis offers better efficiency and accuracy.
•Complex free-form surfaces/irregular parts: 5-axis is the only choice.
2.Accuracy and Surface Quality Requirements:
•General accuracy: 3-axis is fine.
•Higher accuracy, reduced clamping errors: 4-axis is superior.
•Extremely high accuracy, perfect surface finish: 5-axis is the optimal solution.
3.Budget and Cost:
•Tight budget: 3-axis is the most economical choice.
•Moderate budget: 4-axis strikes a good balance between performance and cost.
•Ample budget, pursuing ultimate performance: While 5-axis involves a larger initial investment, it can bring higher efficiency and product value in the long run.
4.Production Efficiency and Cycle:
•Small batch of simple parts: 3-axis is adequate.
•Medium batch, reduced clamping time: 4-axis has clear advantages.
•Large batch of complex parts, shortest cycle time: 5-axis can significantly shorten the production cycle.
Conclusion: Understanding the differences between 3-axis, 4-axis, and 5-axis machining centers is not just about remembering that they have one or two more rotational axes. More importantly, it's about comprehending how these axes empower the cutting tool and workpiece to accomplish machining tasks of varying complexity, precision, and efficiency. In real-world projects, there is no absolute 'best,' only what is most suitable. I hope through this exploration, I can make more informed choices for future engineering practices!
Q&A: Key Differences Between 3-Axis, 4-Axis, and 5-Axis Machining (With Keywords)
Q1: What is the fundamental difference in the motion axes between 3-axis, 4-axis, and 5-axis machining?
A1: The fundamental difference lies in the degrees of freedom and how the axes move.
3-axis machining involves the tool moving linearly along the X, Y, and Z axes.
4-axis machining adds one rotational axis (typically the A or B axis) to the three linear axes.
5-axis machining incorporates two rotational axes (commonly the A and C axes) in addition to the three linear axes, allowing the tool to approach the workpiece from virtually any direction.
Q2: What are the typical part types suitable for 3-axis, 4-axis, and 5-axis machining?
A2: Their applications are defined by their capabilities.
3-axis machining is ideal for parts with features on a single orientation, such as slots, holes, and planar mold cavities. It is not efficient for complex contours.
4-axis machining is essential for parts with cylindrical features, like milling keyways on shafts, machining cams, or engraving on cylindrical surfaces, enabling machining on multiple sides via rotation.
5-axis machining is designed for parts with complex, free-form surfaces, such as impellers, turbine blades, aerospace components, and medical implants, allowing for complete machining in a single setup.
Q3: How does multi-side machining differ between 4-axis and 5-axis machining?
A3: While both can machine multiple sides, their capabilities represent a significant leap.
In 4-axis machining, "multi-side machining" typically means indexing the part to machine different side faces sequentially, such as the four sides of a block. It generally machines one face at a time.
5-axis machining enables true simultaneous multi-side machining. The two rotational axes can move concurrently, allowing the tool to maintain the optimal orientation while continuously machining a complex 3D contour, rather than just machining discrete sides.
Q4: Why is 5-axis machining considered a solution for high precision and high efficiency?
A4: Its advantages stem from two core technical strengths:
Single Setup, Complete Machining: It eliminates the cumulative errors introduced by multiple re-fixturing required in 3-axis or 4-axis machining, ensuring high precision and integrity of the part.
Optimal Tool Orientation: Through the simultaneous movement of the two rotational axes, the tool can use its side for cutting instead of the tip. This permits the use of shorter, more rigid tools, reduces vibration, improves surface finish, and allows for higher feed rates, resulting in high efficiency.
Q5: What are the key factors to consider when selecting a 3-axis, 4-axis, or 5-axis machining strategy?
A5: The decision should be based on a balance of the following factors:
Part Geometry and Complexity: This is the primary factor. Use 3-axis for simple planar features, 4-axis for rotational/cylindrical parts, and 5-axis for complex 3D contours.
Precision and Tolerance Requirements: For complex parts with tight positional tolerances, the single-setup capability of 5-axis machining is often crucial for guaranteeing accuracy.
Production Volume and Cost: 3-axis machines have the lowest entry cost. For high-volume production of complex parts, the high efficiency of 5-axis can offset its higher machine cost.
Required Machining Efficiency: If the goal is the shortest cycle time per part for complex geometries, the simultaneous machining of 5-axis far surpasses the multiple-setup approach of 3-axis/4-axis strategies.
