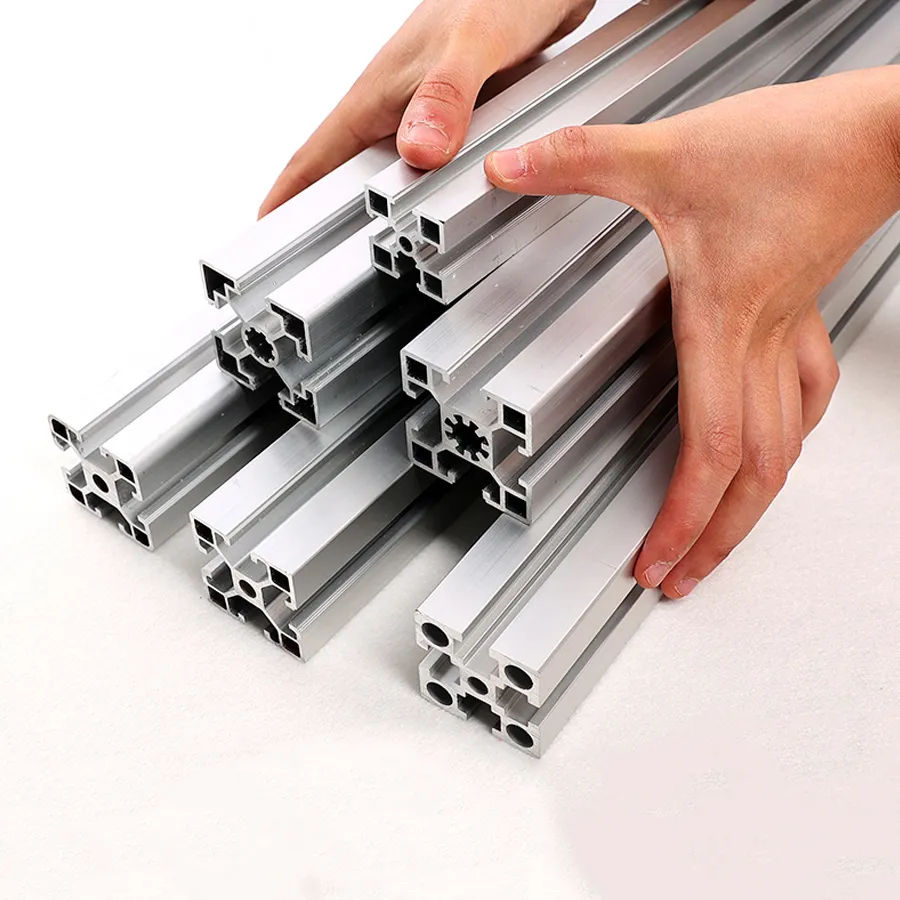

Aluminum Extrusion: Definition and Use Cases
You may never have noticed, but the window frames in your home, the car you drive, and even the core supporting components of the electronic device you hold in your hand are likely all made using the same manufacturing process: aluminum extrusion. This process gives aluminum its unique strength, flexibility, and sustainability, making it a secret weapon in numerous industries.
The market's adoption proves its value. In 2024, the aluminum extrusion market reached $103.2 billion and is expected to double in size by 2033. This rapid growth is not only impressive in terms of numbers, but also in the drive toward lighter, stronger, and more efficient products. Furthermore, over 75% of aluminum produced worldwide is recycled, making aluminum extrusion a key force in shaping a sustainable future.
This comprehensive guide will provide an in-depth analysis of all aspects of the aluminum extrusion process to help you determine if it's the right choice for your next project.
What is aluminum extrusion?
Aluminum extrusion is a highly efficient process that uses a powerful hydraulic press to press a preheated aluminum billet through a die. The process is similar to squeezing toothpaste: the preheated aluminum billet is forced through a die with a specific opening, forming the shape in one go. This process can produce simple bars and angles as well as complex, multi-cavity profiles. Extrusion pressures can range from 100 tons to 15,000 tons, with pressures as high as 100,000 psi in specialized applications. This allows for the flexibility to create everything from basic tubing to complex designs with intricate features such as grooves, flanges, and snap-fit joints.
To ensure the aluminum maintains good ductility and a solid state during extrusion, the billet must be uniformly heated to a critical temperature range of approximately 400–500°C. Furthermore, the extrusion speed is carefully adjusted based on the complexity and size of the profile to ensure consistent quality. The entire process relies on precise CAD design at the front end, supported by specialized tooling (such as mandrels for forming hollow profiles), resulting in highly accurate and consistent manufacturing results.
History of Aluminum Extrusion
The origins of aluminum extrusion can be traced back to 1797, with Joseph Bramah's pioneering method for extruding lead pipes. Initially, the process involved manually pressing heated metal into dies, setting the stage for subsequent technological development. With the introduction of hydraulic presses in 1820, extrusion technology evolved, expanding to include copper and brass in 1894.
Aluminum extrusion achieved breakthroughs in the early 20th century, rapidly becoming a key driver of growth across multiple industries through the rapid production of automobiles and building materials. Throughout the 20th century, the process continued to evolve, incorporating more complex alloys and refined methods to meet wartime and postwar demands. Today, aluminum extrusion is an essential technology for manufacturing high-strength, lightweight aluminum components, used across a wide range of industries.
Continuous improvements in press technology, coupled with a deeper understanding of aluminum's properties, have helped propel extrusion into a key manufacturing method, sustaining innovation and progress in modern industry.
Aluminum Extrusion Product Formation Process
Aluminum extrusion is a key industrial technology that shapes a variety of complex profiles by passing preheated aluminum billets through dies. The process begins by heating the billet to a pliable state of approximately 400-500°C. It is then forced through a specially shaped die under intense pressure, similar to squeezing toothpaste from a tube: the container is the tube, the die is the nozzle, and the punch delivers the tremendous force required to form the product.
Extruders offer a wide range of pressures, from small 100-ton units to large industrial systems exceeding 15,000 tons, to accommodate various billet sizes and product requirements. After the aluminum is formed into a continuous profile through the die, it undergoes a cooling or quenching process to lock in its mechanical properties. This step is crucial for ensuring the profile's strength and durability. The profile is then cut to desired lengths and straightened by stretching to optimize straightness. Heat treatment can also be used to further enhance its properties.
To achieve higher quality and efficiency, modern aluminum extrusion lines are often equipped with advanced sensors that monitor temperature, speed, and load parameters in real time, enabling precise process control. This not only effectively reduces waste but also optimizes the overall performance of the final product. Furthermore, production lines typically cut large aluminum ingots into custom billets, ensuring that each piece of material is in perfect condition before extrusion, laying the foundation for an efficient, high-quality manufacturing process.
What are the seven steps in the aluminum extrusion process?
The aluminum extrusion process involves a series of carefully controlled steps to ensure the highest quality and precision of the final product. From the initial preparation of the die to the final treatment of the extruded profile, each stage is crucial. The detailed process is as follows:
Die Preparation: The process begins with the design and preparation of the die, which is made of strong materials such as H13 steel to withstand the high pressures and temperatures during the extrusion process.
Billet Preheating: Depending on the specific alloy, the aluminum billet is heated to 400-500°C. This preheating process ensures that the metal has good ductility while maintaining its hardness, making it ideal for extrusion.
Bill Loading: After the billet is heated, it is fed into the press. Lubricants or release agents are often added to prevent sticking and facilitate a smoother extrusion process.
Extrusion: The actual extrusion process involves using a ram to force the billet through the die. The extrusion process can be categorized as direct extrusion (where the billet moves forward) or indirect extrusion (where the die moves toward the stationary billet).
Cooling (Quenching): After extrusion, the profile is immediately cooled or quenched to set the aluminum's properties and enhance its strength and durability.
Stretching: After cooling, the profile can be slightly stretched to correct any distortion and improve straightness.
Heat Treatment: Extruded profiles can optionally be heat treated to achieve the desired temper and enhance mechanical strength.
Die Design and Preparation
Die design and preparation are core aspects of the aluminum extrusion process. Dies are typically constructed from H13 die steel, renowned for its exceptional durability under harsh conditions of high temperature and pressure. Before use, the die must be preheated to 450–500°C to ensure uniform metal flow and extend die life. These dies can withstand extrusion pressures of up to thousands of tons, ensuring smooth aluminum forming.
Die structural design is crucial for controlling metal flow. For complex profiles with cavities, "floating" components are often incorporated into the die to guide the aluminum material around them. This requires precision machining and heat treatment to maintain structural integrity under high pressure.
Appropriate draft angles and flow channel design help reduce friction and the risk of defects during extrusion. For complex shapes or high-volume production, the die requires regular maintenance and restoration of surface properties through processes such as re-nitriding. Modern die design also incorporates computer simulation technology to predict metal flow behavior and identify potential problems ahead of time, thereby reducing the trial-and-error costs associated with developing new profiles.
Preheating the Aluminum Billet
Preheating the aluminum billet is an essential step before extrusion. For commonly used 6000 series aluminum alloys, the billet is typically heated to 400–500°C to achieve good plasticity while remaining solid, allowing for smooth deformation without melting during the extrusion process. Precise temperature control is crucial to ensuring uniform mechanical properties throughout the profile.
Some processes also include a high-temperature homogenization treatment of the billet to promote the diffusion of alloying elements and enhance extrudability. Aluminum billets are typically cut from large aluminum chains and come in a variety of sizes to accommodate different extruder specifications. Common heating equipment includes induction furnaces and gas furnaces. After heating, the billet must be fed quickly into the extruder to prevent a drop in temperature that could affect forming quality.
Loading the Billet into the Extruder
Before loading, the billet is often coated with a lubricant or release agent to reduce sticking to the equipment and ensure smooth extrusion. Extrusion presses offer a wide range of pressures, from 100 to 15,000 tons, which directly determines the size and complexity of parts that can be formed. Aluminum billets are fed into a preheated extrusion barrel via a mechanical conveyor to maintain a stable processing temperature and optimize forming conditions.
In indirect extrusion, the die moves toward the stationary billet. This method reduces friction and improves temperature control, resulting in more uniform extruded profiles. Modern extruders are often equipped with automated control systems to precisely regulate the extruder speed, ensuring the billet moves through the die at the optimal rate while maintaining both shape accuracy and surface quality.
Extruding Aluminum Through a Die
A high-pressure punch pushes the aluminum billet through a die, forming it into the desired cross-sectional shape. The extrusion speed is influenced by the alloy type, cross-sectional complexity, and the target exit temperature (e.g., approximately 930°F for some 6000-series alloys). During this stage, friction within the extruder barrel generates additional heat, significantly affecting metal flow and profile quality.
Direct extrusion differs from indirect extrusion in its motion: the former pushes the billet forward through the die, while the latter forces the die against the stationary billet. Indirect extrusion often produces more uniform profile quality due to reduced friction and more stable temperatures. The extrusion ratio (the ratio of billet to profile cross-sectional area) is a key parameter influencing the required pressure and the resulting microstructure.
Cooling the Extruded Profile
After extrusion, aluminum profiles must immediately undergo a cooling (quenching) phase to stabilize their mechanical properties. Cooling methods include air cooling, water mist cooling, or immersion cooling, depending on the profile size and quality requirements. The cooling rate and uniformity directly impact the aluminum profile's metallurgical structure and final properties.
For heat-treatable alloys such as the 6000 series, rapid and uniform quenching is crucial, often targeting the T66 temper to enhance material strength. Cooling the extrusion from approximately 930°F to near room temperature within a specific time window is typically required to optimize the strength-toughness balance and ensure the product meets high quality standards.
Cutting the extrusion to the required length
After cooling, the extrusion is cut to lengths suitable for transportation and processing, typically ranging from 8 to 21 feet. The "tail" of the billet, which contains impurities, is first removed and reused. A hot saw then performs a preliminary cut along the outfeed table, and the final cut is cut to customer specifications by a finishing saw.
High-speed production lines are often equipped with automated traction systems to precisely guide the extrusion to the cutting station. After the preliminary cut, the extrusion is transferred to a cooling zone to cool to room temperature to prevent deformation caused by residual heat. It is then further cut into multiple lengths as needed. All scrap aluminum generated during this process is recyclable, contributing to the circular economy value of aluminum.
Final heat treatment
Heat treatment is a key process for enhancing the performance of aluminum extrusions. Common tempers include T5 and T6. For example, the tensile strength of 6061 alloy in the T4 temper is approximately 241 MPa, but after the T6 temper, it reaches 310 MPa, a significant increase in strength.
A typical process path includes solution treatment, quenching, and artificial aging. The T5 temper refers to direct aging after extrusion; the T6 temper requires solution treatment and quenching before aging. Aging, typically performed at 175–245°C for several hours, improves strength and durability through precipitation hardening.
In demanding applications such as aerospace and defense, multi-stage heat treatment or cryogenic treatment may be employed to achieve a specific microstructure to meet performance requirements under extreme operating conditions. Strict temperature and timing control throughout the entire process are crucial to ensuring uniform extrusion properties and compliance with industry standards.
Comparing aluminum extrusion processes?
To help you better understand, here is a simple comparison table.
Features
| Forward Extrusion | Reverse Extrusion | |
|---|---|---|
| Working Principle | The ram pushes the billet through a stationary die. | The die moves and penetrates through the stationary billet. |
| Friction | High (friction between billet and container wall). | Low (no relative movement between billet and container wall). |
| Extrusion Pressure | Relatively higher. | Relatively lower (more energy-efficient). |
| Profile Quality | Slight variations in properties from front to back end. | Consistent properties throughout, better surface quality. |
| Equipment Cost | Relatively lower. | Relatively higher. |
| Prevalence | Very common, dominant in the industry. | Mostly used in high-end and high-precision fields. |
In actual production, forward extrusion is the most widely used due to its mature technology and high cost-effectiveness. However, when projects require extreme dimensional accuracy, structural uniformity, and mechanical properties, reverse extrusion becomes the preferred option. Engineers will also design and select the appropriate die type based on whether the final product is solid, hollow, or semi-hollow.
What Affects Aluminum Extrusion Quality?
The quality of aluminum extrusion is influenced by a variety of factors, which intertwine and determine the structural integrity and aesthetics of the final product. Understanding these factors can help you optimize the extrusion process to effectively meet specific project requirements.
Alloy Composition: Small variations in elements can significantly affect extrudability, surface finish, and ultimate strength. For example, an imbalance in the magnesium-silicon ratio can lead to poor precipitation, compromising performance.
Blank Homogeneity: The billet must be microstructurally uniform. Failure to do so will result in uneven metal flow during extrusion, causing bowing, twisting, or surface defects.
Internal Defects: Oxides, inclusions, or pores within the billet can directly lead to cracks or fractures in the extruded part. Mold Design: The shape and position of the die orifice, the depth of the weld chamber (for hollow molds), and the flow angle all determine the uniformity of metal flow. Poorly designed molds can lead to uneven flow rates, resulting in bends, twists, or cracks.
Mold Processing Accuracy: The surface finish of the mold is directly "replicated" on the extruded part. High-precision polishing and nitriding are essential.
Mold Condition: Old molds or molds that have failed due to wear and tear can cause profile dimensional deviations or surface defects (such as bright streaks and scratches).
Blank Heating Temperature: If the temperature is too low, the extrusion pressure will increase dramatically, potentially causing mold damage or surface cracks in the part. If the temperature is too high, the part will easily develop a rough surface, coarse grains, or even overburning.
Mold Temperature: Insufficient mold preheating can cause the surface molten aluminum to cool rapidly, resulting in "cold lines" or blockage of the die orifice.
Extrusion Speed: Excessive speed can cause the internal temperature of the part to be too high, leading to bubbles, cracks, and dimensional instability. Excessive speed can affect production efficiency and may cause the temperature to drop too quickly. Cooling Rate (Quenching): Heat-treatable alloys such as 6063 must be rapidly cooled after exiting the extruder (inline quenching). Insufficient cooling rates will prevent the desired mechanical properties (such as T5 or T6 tempers) from being achieved.
Extruder Alignment: Misalignment of the extrusion rod, barrel, and die center can result in uneven wall thickness and bowing of the profile.
Extrusion Barrel Wear: Severely worn barrels can cause excessive gaps between the liner and the billet, resulting in defects such as "skin licking" and trapping of impurities on the billet surface.
Pulling Machine: For thin-walled or long profiles with complex cross-sections, the pulling machine is critical equipment for ensuring straightness and preventing twisting and strain.
Stretching and Straightening: Stretching can eliminate internal stresses in the profile and correct bends and twists. However, excessive stretching can cause changes in the profile's cross-sectional dimensions or generate new internal stresses.
Surface Treatment: Improper control of pre-treatment processes (such as cleaning and etching) such as anodizing and spraying can expose or amplify potential defects introduced during the extrusion process.
Advantages of Aluminum Extrusion
The advantages of the aluminum extrusion process can be summarized in the following key points:

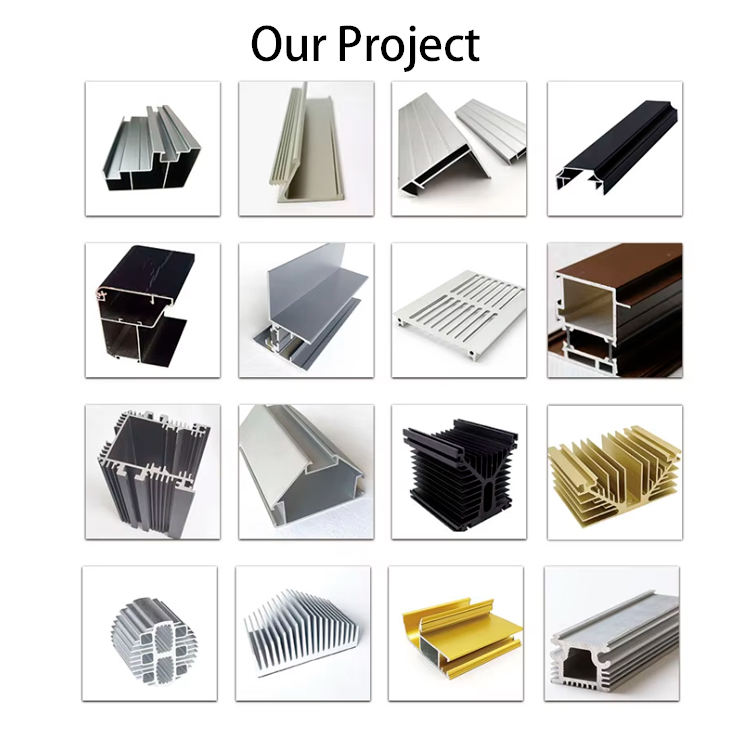

Flexible Design: Complex hollow or solid sections can be formed in a single process, achieving virtually any two-dimensional cross-sectional shape.
High Material Utilization: With virtually no cutting required, most materials can be turned into finished products, with minimal waste.
Cost-Effectiveness: Relatively low mold development costs and short production cycles make it suitable for small and medium-volume orders.
High Strength: The extrusion process creates continuous metal flow lines, and heat treatment (aging) can significantly increase strength after cooling.
Excellent Surface Finish: The extruded surface quality is excellent, making it ideal for treatments such as anodizing and painting, resulting in aesthetically pleasing and corrosion-resistant finishes.
High Production Efficiency: High extrusion speeds allow for continuous production of long products and facilitates automation.
What is the cost of aluminum extrusion?
The cost structure of extrusion is complex, and it's difficult to pinpoint a single figure, as it depends on many factors. However, it can be summarized in the following key points:
Mold Cost (One-Time Investment)
The cost of developing an extrusion mold typically ranges from several thousand to tens of thousands of RMB.
This is a one-time investment that is not recurring for subsequent production of similar products. The more complex the product shape, the higher the mold cost.
Material Cost (Largest Component)
The market price of the aluminum ingot itself is the primary cost component, typically accounting for 60%-70% or even more of the total cost.
Aluminum prices fluctuate with international market trends.
Market fluctuations are the most volatile factor affecting final product prices.
Processing Fees (Operating Costs)
This includes all costs associated with the production process, including machine wear and tear, electricity, labor, and management.
It is usually calculated per ton or per kilogram of profile. The smaller the cross-section, the thinner the wall thickness, and the higher the precision requirements, the higher the processing fee.
Production Volume and Efficiency (Amortized Costs)
The longer the production run and the larger the order volume, the more the mold costs are amortized, resulting in a lower average total cost per product.
Simply put: Total Cost ≈ (Mold Cost ÷ Total Production Volume) + Material Cost + Processing Fee
