In the modern medical field, blood testing is a crucial link in disease diagnosis, treatment monitoring, and health management. The precision and reliability of blood testing equipment are paramount. The core of this equipment lies in its internal precision components, whose manufacturing processes directly determine the equipment's performance and stability. WSRCNC, a brand specializing in CNC machining for medical device components, provides high-quality, high-standard solutions for medical blood testing equipment through its exceptional precision manufacturing capabilities. This article will use the provided image of a precision circular component as an example to delve into WSRCNC's processes, material selection, and application scenarios in medical blood testing component CNC machining, and explore its value in the medical manufacturing field.
Case Component Analysis: A Fusion of Precision and Complexity

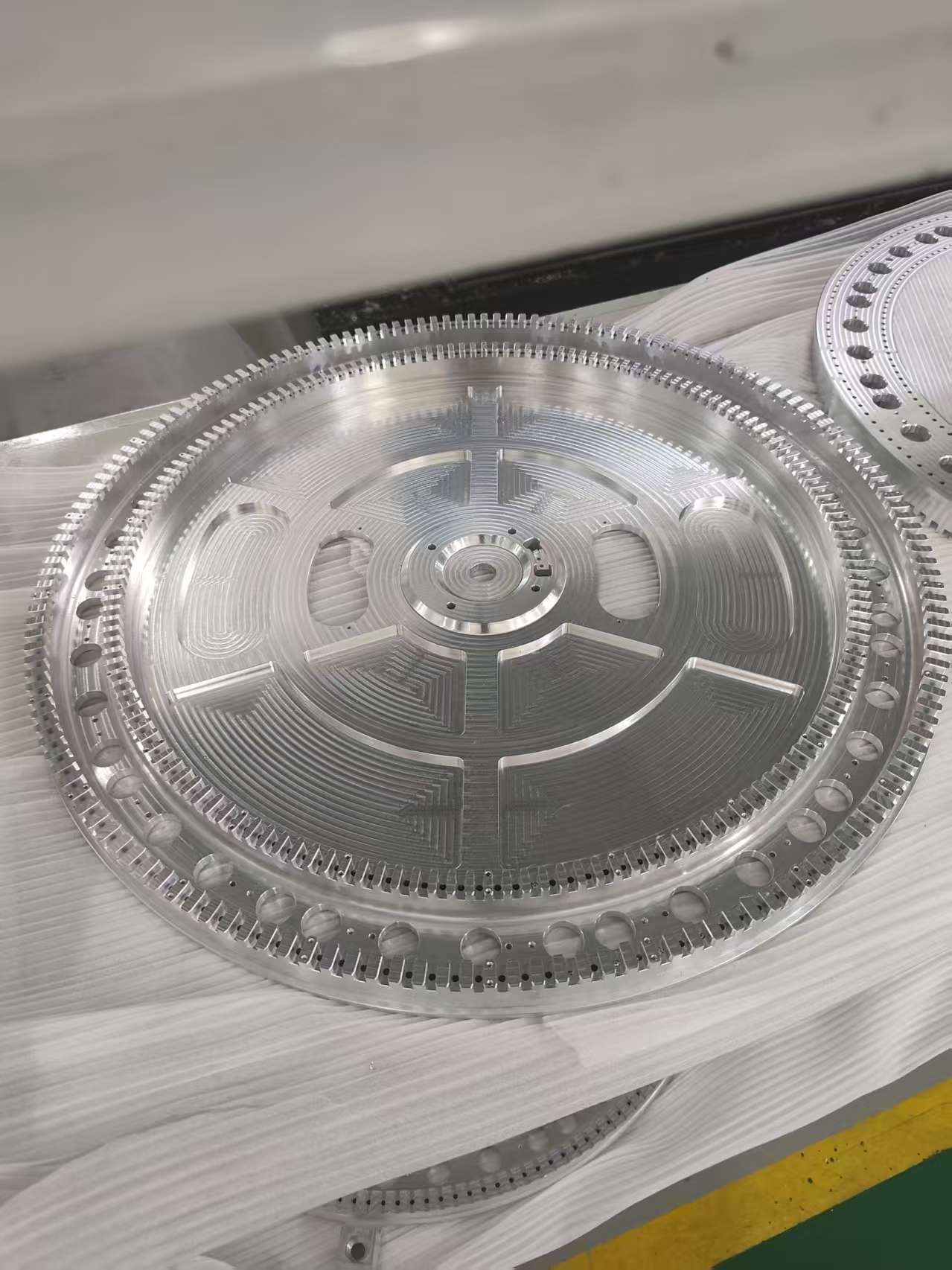

The provided image shows a silver-white, smooth-surfaced, structurally complex circular metal component. The component has a relatively large diameter, with a ring of uniformly distributed tooth-like structures and multiple precision holes around its edge. The interior reveals multi-layered, multi-channel complex geometric patterns, clearly visible through fine machining marks, demonstrating extremely high machining accuracy and process level. Judging by its appearance, this is undoubtedly a precision mechanical part manufactured using advanced CNC technology.
Component Feature Interpretation:
Circular Structure & Toothed Edge: The circular design is typically used in rotational or positioning mechanisms. The toothed edge structure likely interfaces with a drive system (e.g., gears, belts) to enable precise rotational motion, facilitating the stepping or continuous rotation of a sample carousel within the blood testing device.
Precision Holes: The holes on the edge and interior are uniform in size with sharp edges. They are likely used for fastening, connecting to other components, serving as inlets/outlets for fluid channels, or even acting as light transmission holes for optical detection.
Complex Internal Patterns & Flow Channels: The grooves and protrusions inside the component form蜿蜒 paths, which are highly likely microfluidic channels or the base structure of sample reaction chambers. In blood testing, precise fluid control is key to ensuring adequate mixing of reagents and samples, proper reaction, and ultimately, accurate detection. The design and machining precision of these channels directly impact the reliability of test results.
Surface Finish: The component surface exhibits a metallic sheen with fine tooling marks, indicating precise surface treatment. This is crucial for medical devices, as it can reduce bio-contamination and improve corrosion resistance.
In summary, this component likely plays a core role in medical blood testing equipment, such as a sample disc, reaction disc, fluid distributor, or optical detection platform. Its design and manufacturing reflect the ultimate pursuit of precision, reliability, and functionality.
Stringent Requirements for Medical Device CNC Machining
The medical device industry is one of the most heavily regulated globally, with近乎苛刻 requirements for product quality, safety, and performance. For CNC machined components in medical devices, these requirements manifest in the following areas:
High Precision & High Repeatability: Medical devices, especially blood testing equipment, handle microliter or even nanoliter volumes of liquid and perform highly sensitive detection. This necessitates dimensional tolerances for all related components to be at the micron or even sub-micron level. CNC machining ensures that each part in a production batch has highly consistent dimensions and geometry, guaranteeing equipment stability and result accuracy.
Biocompatibility: While the component in the image may not directly contact the human body, it might interact with blood samples or reagents. Therefore, the selected material must have good biocompatibility, not reacting adversely with biological substances, releasing harmful substances, and being easy to clean and sterilize.
Corrosion & Chemical Resistance: Blood, bodily fluids, various biochemical reagents, and cleaning/disinfecting agents can all cause corrosion. Materials must possess excellent corrosion and chemical resistance to ensure long-term stable operation and service life of the equipment.
Surface Finish: A smooth surface is not only aesthetically pleasing but, more importantly, reduces bacterial adhesion, prevents liquid residue, and improves cleaning efficiency. For fluid channels, smooth inner walls reduce fluid resistance, prevent bubble formation, and ensure smooth and precise fluid transfer.
Material Traceability: Every component in a medical device must have complete material source and processing records to ensure quality control and enable rapid traceability in case of issues.
Compliance with Industry Standards: Standards like ISO 13485 (Medical devices — Quality management systems) and FDA regulations impose comprehensive requirements on the design, production, installation, and servicing of medical devices.
WSRCNC's Material Selection Strategy
WSRCNC understands the specific material requirements for medical devices. When selecting machining materials, we comprehensively consider the component's function, operating environment, biocompatibility, mechanical properties, and cost-effectiveness. For the precision component in the image, here are several materials WSRCNC might employ, analyzed with their characteristics:
Aluminum Alloys
Characteristics: Aluminum alloys (e.g., 6061, 7075) are lightweight, have good thermal conductivity, are easy to machine, and are relatively low-cost. Their surface can be anodized to form a hard, corrosion-resistant oxide layer, improving wear resistance and aesthetics.
Applicability: The component in the image is very likely made from an aluminum alloy. In blood testing equipment, aluminum is commonly used for structural parts, brackets, internal functional parts not directly contacting the body, and modules requiring rapid heat dissipation. Its lightweight nature helps reduce overall device weight, and its good machinability makes creating such complex geometries possible. Anodized aluminum, with its increased surface hardness and corrosion resistance, can meet the needs of many precision parts not directly exposed to blood or reagents.
Medical Grade Stainless Steel
Characteristics: 316L stainless steel is one of the most commonly used materials in the medical industry, offering excellent corrosion resistance (especially in chloride environments), good mechanical strength, and biocompatibility. It is easy to clean and sterilize and moderately priced.
Applicability: If the component in the image needs direct contact with blood, reagents, or will be in a humid environment long-term, 316L stainless steel would be an ideal choice. Its corrosion resistance effectively withstands various chemical substances, ensuring long-term stability and safety. WSRCNC uses specific cutting parameters and coolants when machining stainless steel to avoid work hardening and ensure surface quality.
Titanium Alloys
Characteristics: Titanium alloys (e.g., Ti-6Al-4V) are renowned for their exceptional biocompatibility, high strength-to-weight ratio, and excellent corrosion resistance (particularly in biological environments). They are considered the "gold standard" for medical implants.
Applicability: While the component in the image is unlikely an implant, if it must withstand high stress or contact highly corrosive media within the blood testing device while requiring the highest level of biocompatibility, titanium alloy is a viable option. WSRCNC has extensive experience machining titanium alloys, overcoming challenges posed by their high hardness and low thermal conductivity to ensure machining precision and surface integrity.
PEEK (Polyether Ether Ketone)
Characteristics: PEEK is a high-performance engineering plastic with excellent biocompatibility, wear resistance, chemical resistance, high-temperature resistance, and X-ray translucency. It is an ideal lightweight metal alternative.
Applicability: If the component requires electrical insulation, light weight, or must operate in specific chemical environments, PEEK might be chosen. For instance, in fluid control systems, PEEK can be used for valve bodies, connectors, or pump components, leveraging its superior chemical resistance and low friction coefficient. WSRCNC can perform precision CNC machining on PEEK, ensuring its complex channels and hole structures meet design requirements.
WSRCNC's Precision CNC Machining Processes
To manufacture the complex, high-precision medical blood testing components like the one pictured, WSRCNC employs a series of advanced CNC machining processes combined with strict quality control procedures.
Multi-axis Milling
Process Description: Multi-axis milling, particularly 5-axis CNC milling, is ideal for machining complex 3D geometries and surfaces. It allows the cutting tool to move simultaneously along the X, Y, Z linear axes and any two or three of the A, B, C rotational axes, enabling multiple sides of the workpiece to be machined in a single setup, reducing errors from multiple fixturing.
Application in the Case: The component in the image features complex internal channels and multi-layered structures, which can be efficiently and accurately completed in one go using 5-axis milling. For example, the internal蜿蜒 paths and grooves of varying depths can be machined without dead angles through multi-axis interpolation, ensuring channel smoothness and dimensional accuracy. The toothed edge structure and holes can also be finished in the same operation, guaranteeing overall concentricity and positional accuracy.
CNC Turning
Process Description: CNC turning is primarily used for machining rotationally symmetrical parts. By rotating the workpiece and linearly feeding the tool, material is efficiently removed to create features like cylinders, cones, and threads.
Application in the Case: For a circular component like the one pictured, its initial disc shape is typically obtained via CNC turning. If the component requires highly concentric internal holes or shafts, turning is also a key process. WSRCNC utilizes high-precision CNC lathes to ensure the part's roundness, concentricity, and surface roughness meet medical-grade standards.
Precision Drilling and Tapping
Process Description: On CNC machining centers, high-precision drills and taps are used to perform precise drilling and tapping operations, creating various sizes of through-holes, blind holes, and threaded holes.
Application in the Case: The numerous holes on the edge and interior of the component, whether for fastening, locating, or fluid transfer, require extremely high positional and diameter accuracy. WSRCNC uses rigid machines and precision tools, coupled with strict program control, to ensure minimal positional deviation for each hole, smooth hole walls, and complete threads, meeting subsequent assembly and functional requirements.
Surface Treatment
Process Description: After machining, components may require surface treatments to enhance their performance. Common treatments include:
Anodizing: For aluminum alloys, forming a dense, hard, corrosion-resistant oxide layer that can be colored.
Passivation: For stainless steel, removing surface free iron and forming a stable oxide layer to improve corrosion resistance.
Polishing: Improving surface finish, reducing roughness, and lowering the risk of bacterial adhesion.
Application in the Case: The smooth surface of the pictured component likely underwent fine polishing or anodizing. These treatments not only enhance corrosion and wear resistance but also make the part easier to clean and sterilize, complying with medical device hygiene standards.
Application Scenarios in Medical Blood Testing Equipment
The precision component pictured, with its unique design and high-precision manufacturing, has broad and critical applications in medical blood testing equipment. Here are several potential scenarios:
Core Component of Sample Handling & Dispensing Modules
In fully automated blood analyzers, precise sample handling and dispensing is the first and most critical step. This circular component could serve as:
Sample Disc/Reaction Disc: Used to carry multiple blood samples or reagent cuvettes. Through precise rotational movement, it sequentially presents each sample to sampling, mixing, reaction, or detection stations. The toothed edge engages with the drive mechanism for accurate stepping or continuous rotation.
Reagent Distributor: The complex internal channels and holes might constitute a microfluidic system for precisely aspirating, mixing, and dispensing various biochemical reagents into samples, ensuring reaction accuracy and consistency.
Fluid Control & Microfluidic Systems
Blood testing equipment often involves complex fluid management, including sample dilution, reagent mixing, and waste removal. The precision channel design inside the component hints at its importance in fluid control. It could be:
Microfluidic Chip Substrate: Serving as the carrier or integral part of a microfluidic chip, its internal channels align precisely with the chip's microchannels for precise manipulation of微量 fluids.
Precision Component for Pumps or Valves: In certain pump or valve designs, this circular component with complex channels and holes can act as a core element, controlling fluid on/off states and flow rates through rotation or linear motion.
Part of an Optical Detection Platform
Many blood testing methods rely on optical principles like colorimetry, turbidimetry, or fluorescence. If the holes in the component are designed for light transmission or as part of a detection cuvette, it could be a key component of an optical detection platform:
Cuvette or Detection Cuvette Carrier: The holes in the component can serve as micro-cuvettes or detection chambers where blood samples or reaction mixtures undergo optical detection. The component's precise positioning ensures consistent light paths, guaranteeing accurate detection results.
Mechanical Drive & Positioning Mechanisms
The toothed edge structure and overall circular design make it well-suited as part of a precision drive and positioning mechanism:
Precision Gear or Encoder Disc: Coupling with motors or encoders to achieve high-precision angular positioning and rotation control, ensuring the exact position of samples or reaction modules during the detection process.
WSRCNC: The Trusted Choice for Medical Device CNC Component Machining
As a professional CNC machining brand for medical device components, WSRCNC deeply understands the high demands of the medical industry for product quality and reliability. We are committed to providing customers with comprehensive solutions from design optimization to mass production, ensuring every component meets the strictest industry standards.
WSRCNC's Core Advantages Include:
Exceptional Precision Machining Capability: We possess advanced multi-axis CNC machining centers, precision lathes, and EDM equipment, capable of achieving micron-level or even sub-micron machining accuracy, meeting the stringent requirements for dimensional tolerances, geometric tolerances, and surface roughness in medical devices.
Extensive Experience with Medical Materials: We are familiar with the machining characteristics of various medical-grade metals (e.g., 316L stainless steel, titanium alloys, aluminum alloys) and high-performance engineering plastics (e.g., PEEK). We can provide professional material selection advice and optimized machining solutions based on customer needs and application scenarios.
Rigorous Quality Management System: WSRCNC has established a comprehensive ISO 13485 quality management system. Every step, from raw material procurement and production process control to final inspection and delivery, is strictly controlled. We utilize advanced inspection equipment (e.g., CMMs, optical vision measuring systems) to ensure each component conforms to design specifications and medical industry standards.
Customized Solutions: We work closely with customers, providing customized services from product prototyping and small-batch trial production to large-scale manufacturing. Our engineering team can participate in the customer's design optimization phase, offering Design for Manufacturability (DFM) analysis to help shorten development cycles and reduce production costs.
Deep Understanding of Biocompatibility: We always consider biocompatibility a key factor in material selection, machining processes, and surface treatments, ensuring the final product's safety for humans and biological samples.
Rapid Response & Delivery: With efficient production processes and flexible scheduling capabilities, we can respond quickly to customer needs, ensuring the timely delivery of high-precision components.
Conclusion
The medical blood testing component showcased in the image is an example of the successful application of WSRCNC's precision CNC machining technology in the medical field. Through in-depth analysis of the machining processes, material selection, and application scenarios, we can see WSRCNC's professional capability and technical strength in meeting the stringent requirements of the medical device industry. In the future, WSRCNC will continue to uphold the philosophy of "Precision Manufacturing, Guarding Health," constantly innovating to provide global medical device manufacturers with higher quality, more reliable CNC machining solutions. Together, we will advance medical technology and contribute to the cause of human health.
Q&A
Q1: How does WSRCNC ensure the biocompatibility of components machined for medical blood testing equipment?
A1: WSRCNC employs multiple measures to ensure product biocompatibility. First, we strictly select biocompatible materials that conform to international medical standards, such as medical-grade 316L stainless steel, titanium alloys, and PEEK. Second, during machining, we use clean production environments and dedicated cutting fluids to avoid introducing harmful contaminants. Finally, finished components undergo professional surface treatments (e.g., passivation, polishing) as required, followed by rigorous cleaning and inspection to ensure surfaces are free of residues, meeting biocompatibility requirements.
Q2: For components with complex channel designs like the one pictured, what primary machining technologies does WSRCNC use to ensure precision and surface quality?
A2: For components with complex channel designs like the one pictured, WSRCNC primarily utilizes multi-axis CNC milling (especially 5-axis milling). This technology enables tool movement in multiple directions simultaneously, completing complex surfaces and deep grooves in one setup, reducing fixturing errors. Concurrently, we select high-quality micro-tools and optimize cutting parameters (feed rate, spindle speed, depth of cut), combined with efficient cooling/lubrication, to ensure the internal channels' dimensional accuracy, geometric tolerances, and surface finish meet design requirements, avoiding burrs and scratches.
Q3: What is the typical lead time for machining medical blood testing equipment components? How does WSRCNC handle urgent orders?
A3: The lead time for medical blood testing equipment components varies depending on the part's complexity, material, and batch size, typically ranging from a few days to several weeks. WSRCNC shortens lead times by optimizing production workflows, employing efficient CNC equipment, and flexible production scheduling. For urgent orders, we have a rapid response mechanism allowing for prioritized production, even offering 24/7 continuous machining services when necessary, to ensure the delivery of high-quality products in the shortest possible time to meet critical customer needs.
Q4: How does WSRCNC ensure its machined medical components comply with medical industry standards like ISO 13485?
A4: WSRCNC has established a comprehensive ISO 13485 quality management system and strictly adheres to its requirements. This includes:
Document Control: Detailed documentation and standard operating procedures for all production and inspection processes.
Risk Management: Conducting comprehensive risk assessment and control during product design and production phases.
Supplier Management: Strictly vetting and evaluating raw material suppliers to ensure material quality.
Production Process Control: Strictly monitoring machining parameters, equipment maintenance, and environmental conditions.
Inspection & Testing: Utilizing advanced inspection equipment for multi-dimensional, comprehensive product verification to ensure conformity with design specifications and standards.
Traceability: Establishing a robust product traceability system ensuring the material source, processing history, and inspection records for every component are traceable.
Q5: Besides blood testing equipment, in which other medical subsectors can WSRCNC's CNC machining technology be applied?
A5: WSRCNC's CNC machining technology has broad application prospects across the medical industry. Beyond blood testing equipment, we can provide precision component machining services for the following subsectors:
Surgical Instruments: Such as endoscope components, forceps, bone drills, requiring high precision, high strength, and good corrosion resistance.
Implants: Such as orthopedic implants (joints, bone plates), dental implants, cardiovascular stents, demanding biocompatibility and mechanical properties.
Diagnostic Imaging Equipment: Such as precision sensor holders, scanner head components in CT, MRI, and ultrasound devices, requiring high precision and stability.
Drug Delivery Systems: Such as precision valve bodies, pistons in insulin pumps, infusion pumps, nebulizers, requiring precise fluid control and material safety.
Laboratory Automation Equipment: Precision mechanical parts in various automated analyzers, pipettes, sample dividers, requiring high repeatability and reliability.
