Many manufacturers rely on large-scale CNC machine tools to produce a wide range of components and equipment. Large-scale CNC machine tools ensure the production of complex components integrated into industries such as energy and automotive. CNC machining relies on computer control systems to ensure high precision when processing heavy components. Its advanced features help manufacturers achieve precise, high-quality results when machining complex parts with tight tolerances.
What is Large-Scale CNC Machining?

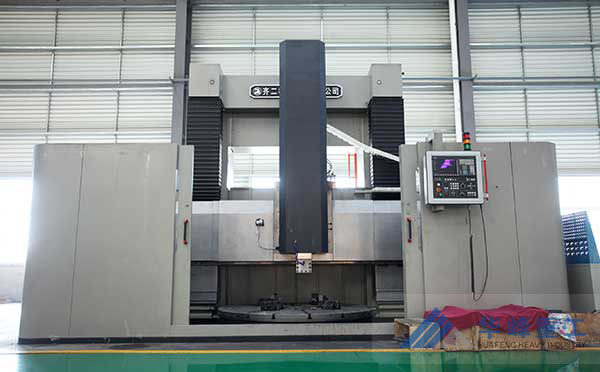

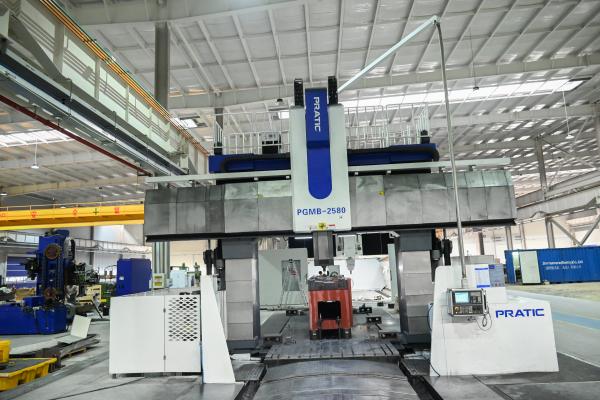

Large-scale CNC machine tools, as core equipment in modern manufacturing, play an irreplaceable role in key sectors such as energy and automotive. These high-precision machines use computer numerical control systems to achieve precision machining of complex components. For example, in the machining of automotive engine blocks, large-scale CNC machine tools can complete all operations—milling, drilling, and tapping—in a single process, consolidating traditional 7-8 steps into a single clamping operation. This not only reduces production cycle time by 60%, but also increases the pass rate for critical dimensions to over 99.9%.
Large-scale CNC machining is a manufacturing process that integrates computer numerical control (CNC) machine tools to produce heavy and extremely complex parts or components. This machining process is suitable for manufacturing large machine parts, which are often heavy and can reach several meters in length.
CNC machine tools are renowned for their powerful spindles, machining envelopes, and reinforced structures. This makes them excellent at machining high-hardness materials such as titanium, steel, and aluminum. Large-part machining facilitates the production of components such as turbines and engine blocks.
This type of equipment has become an indispensable machining solution for high-end manufacturing applications such as precision aerospace structures and large wind turbine components, driving the continuous development of modern manufacturing towards intelligent and precise manufacturing.
What are the key steps in large-scale CNC machining?
This process involves many steps, each crucial to the success of the final result. Below, I will analyze the key steps and process flow of large-scale CNC machining from multiple perspectives.
3D Modeling and Drawing Design
This process requires you to create a complete 3D model of the large part using computer-aided design (CAD) software. As the first step in the large-scale CNC machining process, you can use CAD software such as SolidWorks/AutoCAD to complete the 3D model design.
Due to the complexity and size of the components or parts involved, the design creation phase is crucial. It's crucial to include all detailed information regarding thermal or structural stresses in the CAD model file. For example, key tolerances (such as IT7-IT8 precision requirements) and material specifications (common examples include aluminum alloy 6061, stainless steel 304, and titanium alloys) are noted. CAD software helps create a virtual design of the part, effectively eliminating errors or flaws in the machining process.
CAD files provide further details, such as motion simulation, thermal behavior, and stress analysis, to help ensure optimal performance.
Core Machining Process: CAM Programming
(G-Code Generation) After creating the CAD model, you can translate the design into a language understood by the CNC machine. You can use computer-aided manufacturing (CAM) software to convert the model into step-by-step commands, known as NC code or G-code. These commands control the machine's motion and other instructions, such as depth of cut, tool path, and spindle speed.
(Optimizing Toolpath Strategies) In large-scale CNC machining operations, instructions are often more detailed due to longer machining times and thermal expansion. In these cases, toolpath optimization is crucial to ensure efficient machine path execution.
(Simulation Verification) Many CAM systems are equipped with simulation tools to help you visualize the entire machining process before actual operation begins. These tools enable you to detect tool interference and potential setup issues immediately. This ultimately helps you avoid material waste and save costs.
Machine Setup and Positioning
Workpiece Positioning (Laser Tool Setter Calibration): You need to select the appropriate tool based on the weight and size of the part. The workpiece must be secured to the machine to ensure stability throughout the machining process.
Tool Presetting (Length/Radius Compensation Setting): When producing large CNC-machined parts, multiple tool changes are more common. This includes checking their calibration and sharpness. You should also check their compatibility with the material being machined and select cutting parameters (speed 3000-8000 rpm/feed 0.1-0.3 mm/tooth).
Automated Part Generation

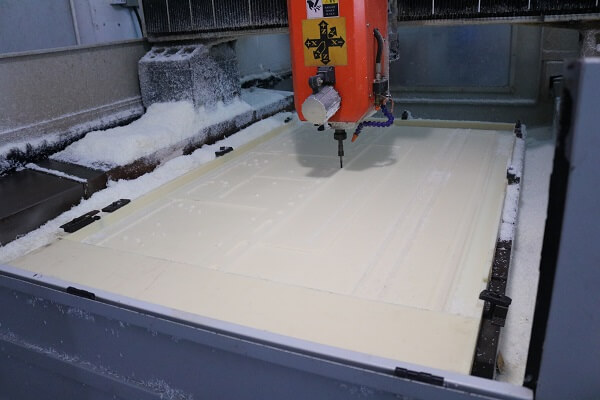

After all setup is completed, the CNC machine begins automatic part generation. During this step, the machine uses pre-coded instructions to cut and shape the workpiece. This step is automated, requiring minimal human intervention. Large machine tools typically use multiple axes to create complex geometries and precise contours with extreme precision.
Machining Cycle Time and Intelligent Monitoring
Machining cycle times for large workpieces are significantly longer, typically lasting 8-72 hours, depending on the part's structural complexity (such as deep cavities/thin-wall features) and physical dimensions (up to several meters). Modern machine tools integrate multi-parameter sensing systems to collect and analyze critical data such as spindle temperature, tool wear, dimensional deviation, and vibration frequency in real time. This intelligent monitoring mechanism effectively ensures process stability and consistent results.
Cooling System and Finished Product Inspection
During machining, the cooling system (water/oil) must operate continuously to maintain the cutting zone temperature within a safe range of 60-80°C to prevent dimensional deviations caused by thermal deformation. After machining, full-scale inspection of the first part is performed using a coordinate measuring machine (CMM), focusing on verifying that critical mating dimensions, geometric tolerances (such as flatness of 0.02mm), and surface roughness (Ra ≤ 1.6μm) meet the drawing requirements.
What products require large-scale CNC machining?
Large-part machining is a core technology in modern industrial manufacturing, providing high-precision, high-reliability solutions for key components across various sectors. As the foundation of heavy industrial manufacturing, this technology plays an irreplaceable role in advanced equipment manufacturing and major infrastructure construction. Its core value lies in its ability to consistently and stably produce large, precision components that meet stringent standards, providing solid manufacturing support for modern engineering systems. Key application areas include:
Power and energy production
In power generation equipment manufacturing, large-scale CNC machining technology is a core process for ensuring the reliability of key components. Using large CNC machine tools to manufacture parts capable of withstanding severe temperatures, stresses, and operational loads is crucial. These parts include core components (rotor shafts/casings) of turbine units, frames/bearing seats, and casings for thermal, nuclear, wind, and hydropower plants.
These components are commonly made of high-temperature-resistant alloys, requiring precise geometry and extremely tight tolerances to ensure long-term stable operation under extreme operating conditions. Modern five-axis CNC centers, with their constant-temperature cooling systems and online compensation technology, effectively address industry challenges such as thermal deformation of large workpieces. Machining accuracy directly impacts reliability and performance, both of which are critical to power generation infrastructure.
Automotive
While most automotive parts are typically small and produced in batches, large-scale machining is crucial for the manufacture of molds, manufacturing tools, and heavy vehicle components. Large machine tools help create molds for body panels, engine blocks for trucks and industrial vehicles, and custom frames for prototyping or motorsports.
Furthermore, CNC machining enables rapid prototyping of large automotive parts and provides precise iterations during the vehicle design phase. With the increasing popularity of electric vehicles, large-scale machining is also increasingly used in the manufacture of battery housings and drive unit components.
Aerospace
In the aerospace sector, where weight efficiency, precision, and strength are paramount, large-scale CNC machining helps manufacture structural components such as fuselage frames, wing spars, landing gear components, and engine mounts. These components are often made of lightweight, high-strength materials such as titanium, aluminum, and carbon fiber composites, requiring advanced and robust machining capabilities.
CNC machine tools in aerospace must adhere to tight tolerances, often within thousandths of an inch, when producing large, safe, and complex components. Multi-axis CNC machine tools also offer numerous benefits to this industry. These machines are capable of machining complex geometries in a single pass, improving productivity and precision.
Mining
In the mining industry, CNC machine tools are crucial for manufacturing the robust components that drive extraction and processing machinery. Components such as gearboxes, crusher frames, excavator arms, and draglines must withstand significant mechanical stress and wear.
These parts are typically machined from hardened steel or castings, and their large size requires a large machining area. While not always at the same level of precision as in aerospace, they remain crucial to ensure compatibility, safety, and efficient performance in harsh operating environments.
Industrial Equipment
The manufacturing industry relies heavily on large CNC machine tools to create custom machinery and automation systems. Examples include machine tool beds, press frames, robotic arms, and conveyor assembly structures.
These machines are often the backbone of high-volume production lines, and their components must be structurally sound and dimensionally precise to maintain efficient operation. CNC machining ensures that these parts can be produced consistently and with minimal error, even in small batches.
Shipbuilding
The shipbuilding industry involves large structures that require precise machining of components for both underwater and surface vessels. Large CNC machine tools help manufacture rudders, propeller shafts, structural beams, engine mounts, and other critical hull components.
These components are often made from corrosion-resistant metals such as bronze, stainless steel, and high-strength alloys. Due to the enormous size of ship components, machine tools must be capable of handling heavy workpieces, long spans, and complex geometries. Therefore, maintaining accuracy over large areas is crucial for proper seaworthiness and fitment.
Energy (Oil and Gas)
In the oil and gas industry, large-scale CNC machining supports both upstream and downstream processes. It is particularly useful for manufacturing pump casings, drill bits, subsea equipment, valve bodies, and flanges. These components often experience corrosive, harsh environments, and high pressures.
Precision is crucial for performance, safety, and regulatory compliance. Machined components must meet API standards and be machined from specialized alloys for long-term durability.
Large-scale CNC machining operations offer the scale, strength, and precision required by these demanding industries, making them an irreplaceable asset in modern manufacturing and infrastructure development.
Advantages of Large-Scale CNC Machining
Large-scale CNC machining technology offers significant advantages in modern manufacturing, primarily in the following areas:
First, in terms of machining capabilities, large-scale CNC equipment boasts excellent material adaptability, enabling efficient processing of a wide range of difficult-to-machine materials, including high-strength alloy steels, titanium alloys, and high-temperature alloys. Its long travel range (X/Y/Z axis travel exceeding 10 meters) meets the demands of machining extremely large workpieces, while multi-axis linkage (5-axis/7-axis) enables precision machining of complex curved surfaces and special-shaped structures.
Second, in terms of precision control, modern large-scale CNC machine tools achieve machining accuracies as low as 0.01mm through closed-loop feedback systems and thermal compensation technology. Highly rigid machine structures (static stiffness ≥ 200N/μm) ensure stability during high-volume machining, while online measurement systems enable real-time monitoring of machining dimensions, ensuring consistency across batch production.
Third, in terms of process efficiency, the integrated machining solution can reduce workpiece setup times by over 90%. Large CNC centers significantly improve machining efficiency through automatic tool changing systems (with a tool magazine capacity of over 60 tools) and high-speed spindles (maximum speed of 15,000 rpm). Intelligent programming software optimizes cutting paths, reducing machining time by 30%-50%.
Finally, in terms of quality control, machining process data is fully traceable, and coupled with three-dimensional coordinate measuring equipment, the pass rate for critical dimensions can reach over 99.9%. The adaptive machining system automatically adjusts cutting parameters, effectively controlling workpiece deformation and ensuring machining quality for large, thin-walled parts (thickness tolerance ±0.05mm).
These technological advantages have made large-scale CNC machining the preferred process for energy equipment, aerospace, shipbuilding, and other fields, providing reliable manufacturing solutions for modern industry. With the in-depth application of intelligent technologies, its technological advantages will continue to expand.
