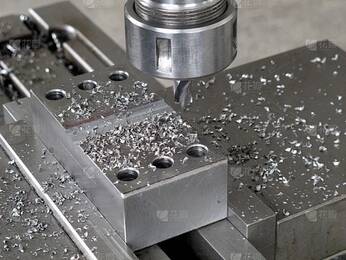

In CNC machining, we often focus on advanced machinery, sharp cutting tools, and efficient programming. However, a frequently overlooked yet critical aspect is workholding.

Choosing the wrong workholding solution can lead to disastrous consequences—dimensional inaccuracies, poor surface finish, vibration chatter, and even catastrophic part failure—even with the most advanced five-axis machine tools.

So, how do you select the best workholding solution for your project? The answer isn’t one-size-fits-all; it depends on a systematic decision-making process. This article serves as your ultimate guide to making the optimal choice.

Step 1: Understand the 4 Key Factors for Evaluating Workholding Solutions

Before selecting a solution, you must answer these four critical questions:

Part Characteristics (The What)

Material: Is it aluminum, steel, titanium, or a soft plastic? Material hardness directly impacts the required clamping force.

Geometry: Is it a simple block, cylinder, or a complex thin-walled or irregular-shaped part?

Size & Weight: The part’s dimensions and weight determine the size and rigidity of the fixture needed.

Batch Size: Is it a one-off prototype, small-to-medium batch, or mass production?

Machining Requirements (The How)

Operations: Is it light milling, heavy-duty milling, drilling, or high-speed cutting? Different operations generate different cutting forces.

Tolerance Requirements: How strict are the tolerances? High-precision applications require maximum rigidity and stability.

Accessibility: Does the tool need to access the part from five or even six sides? This determines potential fixture interference.

Machine Capability (The Where)

Machine Table: Is your machine table equipped with T-slots, grid holes, or a vacuum plate?

Travel Limits: Will the total height of the fixture and part restrict Z-axis travel?

Cost & Efficiency (The How Much)

Setup Time: For large batches, fast loading/unloading times are critical.

Total Cost: Balance the initial investment in fixtures against the gains in efficiency and quality consistency.

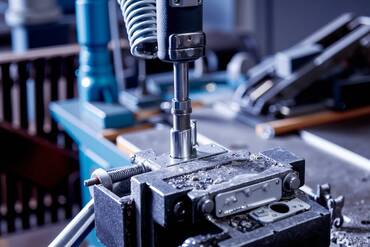

Step 2: Comparison of Mainstream Workholding Solutions

Based on the above factors, let’s evaluate the most common solutions:

Workholding Solution Best For Pros Cons

• Machine Vise Rectangular parts, small batches Versatile, relatively fast setup, low cost Potential interference, poor for irregular shapes

• Chuck (3-Jaw/4-Jaw) Cylindrical parts, turning-milling Precise positioning for cylinders, high clamping force Unsuitable for non-round shapes, may cause interference

• Vacuum Chuck Thin plates, non-porous materials No clamping interference, full-surface contact Requires air supply, limited clamping force

• Modular Fixturing Small batches, multi-variety Highly flexible, reconfigurable Higher initial investment, requires expertise

• Dedicated Jigs/Fixtures Mass production, complex parts Maximum efficiency, high precision High design/manufacturing cost, part-specific

Step 3: Practical Decision-Making Flowchart

Follow this process to make a rational decision:

Evaluate Part Shape:

• Block/Rectangular? → Prioritize a Machine Vise.

• Cylindrical? → Prioritize a Chuck.

• Thin plate or large flat surface? → Prioritize a Vacuum Chuck.

• Complex irregular shape? → Consider Modular Fixturing or Dedicated Jigs.

Evaluate Production Volume:

One-off/Prototype: Use general-purpose/temporary methods like vises, wax, or double-sided tape. Consider the flexibility of Modular Fixturing.

Small/Medium Batch: Optimize the use of vises/chucks or invest in Modular Fixturing for efficiency.

Mass Production: Invest in Dedicated Jigs/Fixtures. The high cost is justified by the time saved per part.

Final Checks:

Does the fixture interfere with the toolpath? (Simulate in CAM software.)

Is the clamping force sufficient without damaging the part? (Use soft jaws or spacers.)

Does it allow proper chip evacuation and coolant flow?

Conclusion: There Is No “Best,” Only “Most Suitable”

There is no universal “best” workholding solution. Choosing the optimal solution for your CNC machining project is an art of balancing part characteristics, machining requirements, equipment limitations, and cost-effectiveness.

Investing in the right workholding solution is not just an investment in fixtures—it’s an investment in machining quality, equipment safety, and overall production efficiency. The next time you start a new project, don’t wait until you hit the cycle start button to think about workholding. Make it the first step in your process design, and you’ll reap unexpected rewards
