Vacuum casting is a widely used manufacturing process known for producing high-precision, superior-quality prototypes and small-batch components. Valued for its efficiency, adaptability, and cost-effectiveness, it has been widely adopted across numerous industries.

This guide offers a comprehensive overview of vacuum casting—from its fundamental mechanisms to practical design tips for achieving optimal outcomes. By gaining a deeper understanding of this method, businesses can create high-performance prototypes and functional parts that strictly comply with precise specifications. Let’s dive in!

What is vacuum casting?

Vacuum casting is an efficient manufacturing process widely used to produce high-precision, high-reliability prototypes and small-batch parts. This process involves injecting a liquid material, such as polyurethane resin, into a silicone mold under a vacuum, achieving precise replication of intricate details, resulting in parts with precise form and dense structure.

Vacuum casting is favored for its ability to reproduce complex geometries and excellent finished product quality, making it the preferred manufacturing method for numerous industries, including automotive, consumer goods, and medical devices.

Key Features of Vacuum Casting

Vacuum casting is a widely used molding process for rapid prototyping and small-batch production. Its key features include:

High Precision and Surface Quality: It accurately replicates the fine structure and texture of the mold, resulting in smooth, detailed molded parts, making it suitable for appearance prototyping and functional verification.

High Material Flexibility: It can use a variety of polyurethane resins (PU) to simulate the mechanical properties and appearance characteristics of plastics such as ABS, PP, PC, soft rubber, and even transparent materials.

Low-Cost Small-Batch Production: It is particularly suitable for small to medium-sized batches (typically 15-30 parts per mold), significantly reducing costs and cycle times compared to steel mold injection molding.

Short Turnaround Time and Fast Delivery: The mold production (silicone mold) and molding cycle are short, typically allowing the entire process from prototype to finished product to be completed within a few days, accelerating the product development process.

Suitable for Complex Structures: Vacuum-assisted injection molding effectively fills fine structures and reduces air bubbles, making it suitable for molding complex geometries and thin-walled parts.

Good Performance Consistency: Through effective process control, parts exhibit excellent consistency and stability in mechanical properties and dimensions. Environmentally friendly and user-friendly: Typically performed at room temperature, it consumes relatively little energy and offers a wide range of materials, including some resins with low volatility.

The main limitation is the limited mold life (typically around 20-30 pieces), making it unsuitable for large-scale production. Furthermore, while the material properties can simulate engineering plastics, they still differ from those of actual injection-molded parts.

Vacuum casting has become a preferred technology for prototyping and small-batch production in the automotive, medical, consumer electronics, and product design sectors due to its high efficiency, low cost, and excellent results.

Why Vacuum Casting? Vacuum casting is highly favored during product development and prototyping because it can produce parts with a quality that closely resembles mass-produced products. The following are some of the main reasons manufacturers choose this process:

High fidelity to the final product: Vacuum-cast parts are not only visually identical to the final product, but also closely resemble mechanical properties and material performance, significantly improving the effectiveness of testing and validation.

Cost-effective small-batch production: Silicone molds offer low production costs and fast turnaround times, making them particularly suitable for small- to medium-batch prototypes or end-use parts, effectively avoiding the high investment associated with traditional mold making methods.

Supports Rapid Design Iteration: Mold production is flexible and easily modifiable, enabling design teams to implement multiple product iterations at a low cost, accelerating design optimization and troubleshooting.

Suitable for Functional Testing: Prototypes produced using this process exhibit excellent mechanical properties and dimensional stability, making them suitable for assembly testing, functional verification, and even some environmental testing, laying the foundation for a smooth transition to mass production.

Adept at Reproducing Complex Structures: The vacuum environment helps fully fill the mold cavity, preventing air bubbles and material shortages. It is particularly suitable for forming thin-walled, finely textured, or complex parts, overcoming many limitations of traditional processes.

With its excellent ability to reproduce detailed details, favorable cost-effectiveness, and wide material compatibility, vacuum casting has become a key process for accelerating product development and achieving design innovation in the automotive, consumer electronics, and medical device industries. Its advantages in significantly reducing development costs and time while ensuring quality ensure its continued critical role in modern manufacturing.

Vacuum Casting Workflow

1. Master Pattern Creation

First, a high-precision "master pattern" is required, typically produced by 3D printing (such as SLA stereolithography) or CNC machining. The surface must be polished and processed to achieve the desired smoothness. This pattern will serve as the starting point for the replica.

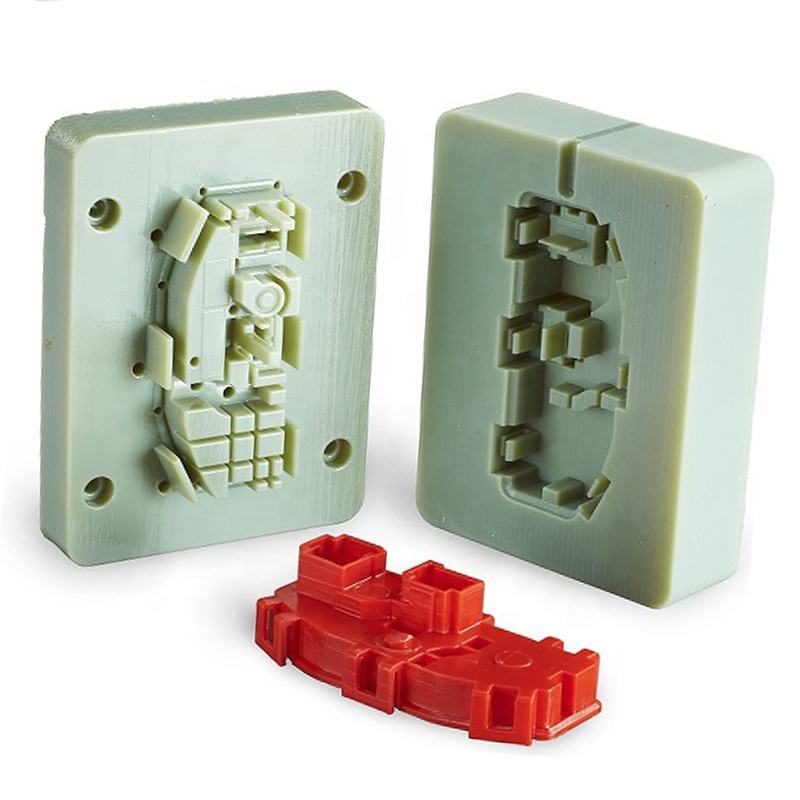

2. Silicone Mold Creation

Securing the Master Pattern: The master pattern is placed in the mold frame and, if necessary, sprues and vents may be installed.

Vacuuming the Silicone: Liquid silicone mixture is poured into the mold frame, and the entire process is performed in a vacuum chamber. The vacuum environment removes air bubbles from the silicone, ensuring that the mold perfectly replicates every detail of the master pattern.

Curing: The poured silicone is heated and cured, forming a flexible silicone mold.

Mold Separation: After the silicone has fully cured, the mold is carefully cut open along the parting line to remove the master pattern. At this point, the mold interior has formed a cavity identical to the master pattern.

3. Vacuum Casting

Resin Mixing: Mix two-component polyurethane (PU) resins in appropriate proportions based on the desired material properties (such as hardness, color, and transparency).

Vacuum Casting:

Close the silicone mold and place it back into the vacuum casting machine.

Pour the mixed resin into the mold's sprue.

Start the vacuum machine, and under continuous vacuum, the resin is drawn into the mold cavity. The vacuum effectively removes air bubbles from the mold cavity and the resin, ensuring that the material completely fills every detail.

Curing: The resin in the mold solidifies in a heating furnace.

4. Demolding & Post-Processing

After the resin has solidified, the elasticity of the silicone mold allows for easy removal of the finished part, even with complex features like undercuts.

Finally, remove any excess material from the sprue and vents, and perform necessary post-processing, such as sanding and painting, to create the final product.

Core Advantages of Working Principle

Vacuum Environment: Key steps are performed in a vacuum chamber, effectively eliminating air bubbles and ensuring part density and surface quality (porosity).

The elasticity of silicone molds: This allows for the production of complex geometries, including slight undercuts, while also ensuring easy demolding without damaging the part.

Material Diversity: By using different polyurethane resins, the properties of a wide range of engineering materials, from rigid plastics (such as ABS and PC) to flexible rubber, can be simulated.

Simply put, vacuum casting is like "using high-grade silicone as a mold and then cloning the original model with resin under a vacuum." It seamlessly combines the advantages of vacuum technology (for air bubble removal) and soft molds (for detailed reproduction), making it a highly efficient method for achieving high-quality, low-volume reproduction of a model.

Advantages of Vacuum Casting: Extremely high replication accuracy and excellent surface quality: Fine details of the master model (such as textures, logos, and microstructures) can be perfectly reproduced, resulting in smooth part surfaces that typically require little or no post-processing.

Cost-Effective (Suitable for Small Batch Production): Silicone molds are significantly less expensive than metal molds (such as steel molds), making them ideal for producing small batches of around 15-30 parts, eliminating the need for expensive mold investments.

Short Production Cycle and Speed: Silicone molds require a short production and curing time (typically just 1-2 days), making the entire process from prototype to final part extremely fast and significantly accelerating product development iterations.

Diverse Material Options for Simulating a Variety of Properties: Polyurethane (PU) resins with varying properties can be used to simulate the mechanical properties, transparency, and feel of various engineering plastics, including ABS, PP, PC, acrylic, and soft rubber.

Adept at Creating Complex Geometries: The vacuum environment and the elasticity of silicone molds allow for seamless filling of complex structures (such as thin walls, deep cavities, and tiny features) and easy demolding, even handling slight undercuts.

Suitable for Functional Verification: The resulting parts not only closely resemble the final product in appearance, but also possess similar mechanical properties and functionality, making them suitable for assembly testing, market demonstrations, and even some environmental testing.

Disadvantages of Vacuum Casting: Limited mold life: This is the primary limitation. Silicone molds age and tear after repeated use, and a typical mold lifespan is between 15-30 castings, making them unsuitable for large-scale production.

Material properties vary: Although PU resin can simulate many plastics, its chemical and thermal properties (such as chemical resistance, long-term heat resistance, and creep resistance) differ from those of authentic injection-grade engineering plastics, making it a non-sequitur.

Size limitations: Limited by the size of vacuum casting machines and silicone molds, very large parts cannot be produced (generally suitable for parts smaller than 500x500mm).

Relatively high per-part cost: While the cost per mold is low, as part counts increase, mold life shortens and mold re-making becomes necessary, resulting in a higher average cost per part than injection molding (in large batches).

Process reliance on operator experience: Process parameters such as resin mix ratio, degassing time, and pouring speed require careful control. Otherwise, internal bubbles or defects can easily occur, affecting part quality.

A brief overview of commonly used materials for vacuum casting.

The most commonly used materials for vacuum casting are various polyurethane (PU) resins. By selecting different resin types, the properties and appearance of a variety of engineering plastics can be simulated. A brief summary is as follows:

ABS-like resin: The most commonly used, with good overall strength and toughness, suitable for most housings, structural parts, and general prototypes.

PC-like resin: High strength and impact resistance, with transparent grades available, suitable for transparent covers, protective parts, and parts requiring high strength.

PP-like resin: Offers a certain degree of flexibility and fatigue resistance, suitable for parts requiring toughness, such as snaps and container lids.

Soft glue/rubber-like resin: Available in varying hardness (such as Shore A), suitable for flexible parts such as handles, buttons, and seals.

Transparent resin: High optical clarity, suitable for lenses, windows, optical demonstration models, etc.

High-temperature-resistant resin: Excellent heat resistance (up to 120°C) and used for lamp housings, engine peripheral test parts, etc.

Flame-retardant resins: Meet UL94 V-0 and other flame-retardant standards for use in flame-resistant components such as electrical appliances and connectors.

Vacuum casting is an ideal process for producing high-precision prototypes and small-batch production parts. Its exceptional precision, flexibility, and cost-effectiveness have made it an indispensable component in product development across various industries. Among numerous service providers, Wsrcnc is your trusted vacuum casting partner.
