The booming UAV industry has put forward higher requirements for functionality, durability and detailed design, and the innovation of CNC machining (CNC) technology is driving this process - especially the precision manufacturing of aluminum alloy parts, which has significantly improved the production efficiency and performance of UAVs. As an ideal material for UAV structures, aluminum alloys have become the first choice for key components due to their lightweight characteristics, excellent corrosion resistance and excellent mechanical properties.
How does CNC precision machining reshape the core components of UAVs?

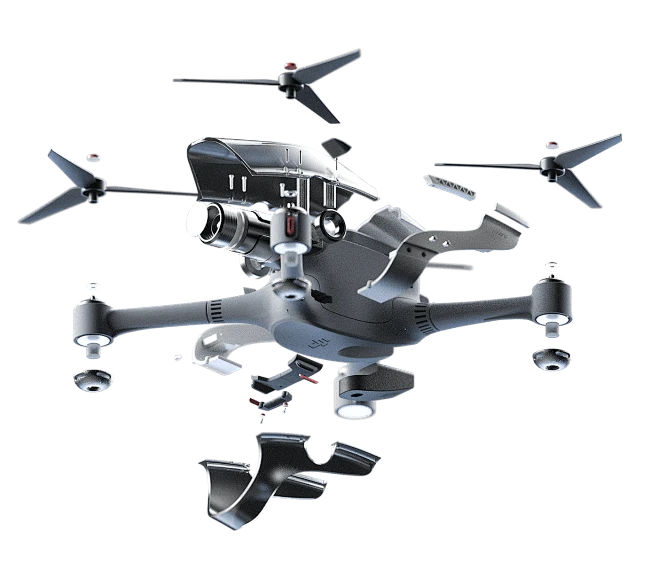

In UAV manufacturing, CNC machining (CNC) technology significantly improves structural strength and flight performance through high-precision, one-piece aluminum alloy parts. The following are the six key components of CNC machining and their technical value:
UAV frame: The CNC-machined aluminum alloy frame is the core load-bearing structure of the UAV, achieving a perfect balance between lightness and rigidity. Redundant materials are eliminated through subtractive processes to ensure excellent durability and anti-friction performance while maintaining optimal weight efficiency.
Propeller hub: The high-precision hub is a key node for power transmission. The CNC process ensures micron-level matching between the wheel hub and the motor shaft, avoiding dynamic imbalance during high-speed rotation, thereby improving thrust efficiency and extending motor life.
Motor bracket: The CNC-processed bracket fixes the motor position with a tolerance of ±0.01mm to eliminate installation deviation. This precise alignment can reduce vibration harmonics and directly improve flight stability and energy efficiency conversion rate.
Camera gimbal: The complex motion mechanism of the three-axis gimbal relies on CNC one-piece molding technology. The hinged parts cut from aluminum alloy can suppress lens jitter during high-intensity movement and ensure that the dynamic shooting picture is stable and distortion-free.
Landing gear: The CNC-made landing gear adopts topological optimization design. While reducing weight, it improves impact resistance through honeycomb structure or reinforcement ribs to provide reliable buffering for instantaneous loads during landing.
Battery bracket: The customized bracket realizes seamless fit between the battery compartment and the fuselage. The anti-skid groove and lightweight hollow design prevent battery displacement and avoid additional weight burden, optimizing the overall aerodynamic shape.
Summary of technical advantages: CNC machining maximizes material utilization, complex geometric forming capabilities and batch consistency, making drone parts simultaneously break through in three dimensions: strength, precision and lightweight, becoming an irreplaceable manufacturing solution for high-performance drones.
Why do drones use aluminum and aluminum alloy materials?
Unmanned aerial vehicles (UAVs) widely use aluminum and aluminum alloy materials, mainly due to their core characteristics such as lightweight, high strength, and corrosion resistance. These advantages directly improve the flight efficiency, maneuverability, and structural reliability of drones.
In application scenarios such as agricultural drones and industrial drones that require high durability, aluminum alloys have become the preferred material for key components such as frames, arms, and support structures due to their excellent compressive strength and fatigue resistance. By adding alloying elements such as magnesium (Mg) and copper (Cu), the mechanical properties of aluminum alloys can be further optimized, while maintaining lightweight while enhancing tensile strength, rigidity, and thermal conductivity, making them adaptable to more demanding working environments.
Thanks to its excellent comprehensive performance, aluminum alloys have become an indispensable material for consumer, commercial, and professional drones, and continue to promote the innovation and development of drone technology.
What role does high precision play in drone manufacturing?
High precision plays a vital role in drone manufacturing, which directly determines flight stability, energy efficiency optimization, and overall performance. Parts manufactured by precision machining (such as CNC technology) can ensure the coaxiality of motor installation, propeller dynamic balance and dimensional tolerance of structural parts at the micron level, thereby reducing vibration and energy loss and improving flight efficiency. At the same time, high-precision assembly makes the aerodynamic shape more in line with design expectations, reduces wind resistance and extends flight time. In professional applications such as aerial photography and surveying, precision-machined gimbals and sensor brackets can minimize jitter and ensure the accuracy of data collection. High precision also helps to install and integrate multifunctional advanced systems such as sensors, cameras and GPS devices. In addition, strict tolerance control can also improve component interchangeability and reduce maintenance costs. It can be said that high-precision manufacturing is the basic support for drones to achieve reliability and high performance.
The importance of durability of drone accessories and components
The reliability and long-term performance of drones are centered on the durability and stability of key components. High-durability components can not only significantly extend the service life of the entire machine, but also ensure safe operation under harsh working conditions such as extreme climates and high-intensity operations. By using high-quality materials such as aviation-grade aluminum alloys and composite materials in combination with precision machining processes, the fatigue resistance and environmental tolerance of structural parts can be greatly improved, thereby reducing the risk of accidents caused by component aging or failure. This optimization of materials and processes directly reduces the frequency of maintenance and unexpected downtime, allowing drones to maintain a stable attendance rate in professional fields such as surveying and inspection and high-frequency entertainment applications. At the same time, rigorously verified durable components can effectively avoid structural failures in flight, providing double protection for operational safety - protecting expensive main equipment and avoiding secondary hazards caused by crashes. This is why modern drone manufacturers regard component durability as a key indicator of the core competitiveness of their products.
How to customize high-quality drone accessories with CNC machining
Drone parts CNC machining process steps
Design and prototyping: The creation of drone parts begins with the production of detailed CAD (computer-aided design) models. CAD designs contain important contours and dimensions related to the definition of the function and performance of the part.
Material selection: The selected material must be aluminum, carbon fiber or even plastic, and must meet the strength, weight and durability requirements of the component.
Machine programming: The model in the CAD file can also be equipped with tool paths and parameters, which can then be machined using CAM (computer-aided manufacturing) tools. In this step, the CAM system is also responsible for generating tool paths and setting machine parameters for precise machining.
CNC machining: In this advanced CNC technology step, the material selected in the previous step undergoes a rigorous stainless steel refining stage, which involves milling, turning or drilling.
Quality inspection: After the machining stage, the machine workpiece or part requires final finishing, which is verified by checking its dimensions and analyzing its surface finish.
Finishing and post-processing: Surfaces can be given additional treatments such as anodizing, polishing, coating, etc. to enhance their performance and make them effective, durable, and aesthetically pleasing.
Advantages of using precision CNC machines to process drone parts
High dimensional accuracy: Drones are used in a wide range of applications, so the parts must be utilized in the best possible way. Therefore, the parts must be manufactured through drone CNC machining with excellent precision to function properly. Demanding drone applications require flexible and reliable performance.
Consistency and repeatability: The production of all drone parts requires consistency and repeatability. CNC technology helps achieve these standards, so it is ideal for mass production of drone parts.
Material diversity: CNC machines can manufacture parts using different metals, plastics, and composite materials. This is very useful for manufacturers who want to manufacture drones because they can choose the most suitable material for each part.
Enhanced structural integrity: Drones have to perform complex tasks in harsh conditions. Therefore, their tails are prone to undergoing tremendous stress.
Customization options: Drones can perform a variety of functions, so a variety of elements determined according to customer requirements can bring unique designs and innovative features without limiting reliability.
Choosing the right CNC parts and drone supplier
Choosing the right supplier is crucial to ensure the quality, reliability and efficiency of your business processes. Start by evaluating how long the supplier has been in business. Manufacturing CNC parts for drones is a professional job, so experience is essential. Suppliers must hold industry-recognized certifications, such as ISO 9001, as these certifications demonstrate their strict quality control processes.
Evaluate their production capabilities, such as advanced machines, customization services, and the ability to meet your needs. Customer reviews and recommendations can also reflect the reliability and overall reputation of the supplier. Remember that good communication and the guarantee of on-time delivery are crucial factors when choosing a supplier.
How does CNC milling technology improve drone prototypes and accessory parts?
CNC milling technology has significantly improved the quality and efficiency of drone prototype development and accessory production through its high precision, high flexibility and scalability, which is specifically reflected in the following aspects:
1. Improve prototype development efficiency
Fast iteration: Directly process the design prototype through digital programming, avoiding the time cost of traditional mold opening and accelerating the product verification cycle.
Complex structure realization: Support multi-axis linkage processing, and can manufacture UAV parts (such as arms, brackets, shells, etc.) with complex geometric features such as curved surfaces, hollows, and special-shaped holes.
2. Optimize part performance
Precision tolerance control (±0.01mm level): Ensure the matching accuracy of key components such as motor mounting positions and propeller interfaces, and reduce vibration and energy loss.
Material adaptability: Aluminum alloy (6061/7075), titanium alloy, engineering plastics, etc. can be processed to balance strength and lightweight requirements.
Functional integrated design: Reduce assembly links through integrated milling (such as integrating heat sinks with structural parts) to improve overall reliability.
3. Reduce production costs
Small batch economy: No mold investment is required, suitable for customized or small batch production, and reduce the trial and error cost in the R&D stage.
Efficient use of materials: Reduce waste by optimizing tool paths, especially suitable for high-value aviation material processing.
4. Application scenario examples
Prototype verification: Rapidly manufacture functional test pieces such as flight control brackets and gimbal structures.
Performance upgrade: Processing lightweight propeller hubs, high heat dissipation motor seats and other optimized accessories.
Repair and replacement: Accurately replicate damaged parts to solve the maintenance problems of discontinued models.
Conclusion: CNC milling technology not only shortens the cycle from design to mass production of drones through its precision and flexibility, but also directly improves flight performance and durability by optimizing part structure, materials and functional integration. It is a key supporting technology for drone research and development and manufacturing.
What materials are more durable for CNC-processed drone parts?
Aviation aluminum alloys (such as 6061-T6, 7075-T6): With excellent strength-to-weight ratio and corrosion resistance, it is the first choice for load-bearing structures such as racks and motor seats. 7075 aluminum alloy is particularly suitable for high-strength demand parts. Its tensile strength is close to that of steel, but it is 60% lighter.
Titanium alloys (such as Grade 5 Ti-6Al-4V): Used for key moving parts (such as universal joint bearing seats), it has ultra-high strength, fatigue resistance and extreme temperature stability, but the cost is relatively high.
Engineering plastics (PEEK, nylon glass fiber): suitable for shock-absorbing brackets or insulators, providing good damping characteristics and chemical stability while reducing weight.
Stainless steel (17-4PH): used for fasteners or hinges in special environments, with excellent rust and wear resistance.
The materials used for CNC-processed drone parts need to balance strength, weight, cost and processing difficulty - aluminum alloys perform best in terms of comprehensive cost performance, while titanium alloys are suitable for military-grade high-load drones. After all materials are precision-processed by CNC, the surface can be further anodized or sandblasted to enhance durability.
Q: What are CNC drone parts?
A: CNC drone parts refer to drone-specific parts manufactured by computer numerical control (CNC) precision machining technology, such as high-strength aluminum alloy frames, titanium alloy motor seats or high-precision gimbal structures. They have the characteristics of light weight, high rigidity and strict tolerance control (±0.05mm), which can significantly improve flight stability and durability.
Q: What is the role of CNC processing drone aluminum alloy materials
A: CNC processing drone aluminum alloy materials can achieve a perfect combination of high strength, light weight and precision structure, and improve flight stability through micron-level machining accuracy (±0.02mm). Its excellent corrosion resistance and heat dissipation characteristics (such as 7075-T6 thermal conductivity 130W/m·K) can extend the life of components. At the same time, the integrated molding design reduces assembly links and significantly reduces the failure rate.
Q: What are the processes for customizing drone accessories using CNC?
A: The complete process of CNC customizing drone accessories includes: demand analysis → 3D modeling → material selection (such as aviation aluminum/titanium alloy) → CNC programming → precision machining (five-axis milling/turn-milling composite) → surface treatment (anodizing/sandblasting) → quality inspection (three-coordinate measurement) → assembly verification, and full digital control ensures ±0.05mm tolerance and performance compliance.
Q: Why do drones now choose aluminum alloy instead of plastic?
A: Modern drones generally use aluminum alloy instead of plastic, mainly because of its excellent strength-to-weight ratio (such as 7075 aluminum alloy with a tensile strength of 560MPa) and fatigue resistance, which can withstand high-frequency vibration and impact loads. At the same time, CNC precision machining can achieve complex heat dissipation structures and ±0.05mm assembly accuracy, which is a performance advantage that engineering plastics (such as nylon glass fiber with a tensile strength of <200MPa) cannot achieve in key load-bearing components.
Q: What processes can be adopted to improve the production quality of drone parts
A: The implementation of a full-process quality control system can significantly improve the production quality of drone parts: from raw material testing (spectral analysis), CNC processing process monitoring (online measurement), to post-processing process (anodizing thickness control) and final full inspection (three-coordinate + airtightness test), combined with SPC statistical process control and DFM manufacturability optimization, ensure that the key dimension tolerance is ≤±0.03mm and the fatigue life is increased by more than 50%.
Q: What are the advantages of using CNC services to manufacture drone parts
A: The core advantage of CNC services in manufacturing drone parts is: through ±0.01mm ultra-high precision processing (five-axis linkage) and aviation-grade material adaptability (such as 7075-T6 aluminum alloy), the strength of structural parts is increased by 40% and the weight is reduced by 25%. With the integrated molding technology to eliminate assembly errors, the drone has achieved breakthrough optimization in key indicators such as endurance, stability and impact resistance.
Q: What are the advantages of Worldsoaring as one of the top ten drone parts manufacturers in China?
A: As one of the top ten drone parts manufacturers in China, Worldsoaring has established industry barriers in precision processing, fast delivery and the ability to accept high-complexity orders with its military-grade five-axis CNC cluster (±0.005mm), aviation aluminum 7075-T6 special process, AS9100D/ISO13485 dual certification system, and successful cases of DJI/NATO projects.
