Have you got a brilliant design brewing? Perhaps it's a futuristic home decor piece, a custom lightbox to showcase treasures, or a creative prototype that needs to stand out at a commercial presentation? To realize it, you've turned to the gleaming, modern acrylic—a material with a crystal-clear, tough texture and a light feel, making it the ideal material for illuminating your creative vision.
However, as you prepare to begin, a seemingly basic yet crucial question arises: "How do I cut this beautiful acrylic sheet?" Whether it's a flash of inspiration for a DIY enthusiast or a meticulous professional, precise and clean cutting is the first step in bringing your blueprint to life—and yet it's also the step that often derails your creativity.
The real challenge lies in this: despite its elegant, glass-like appearance, acrylic is still essentially a plastic. This means it can't be easily manipulated with a hard-nosed approach. The wrong tools or methods can easily lead to melted edges, uneven surfaces, or even cracked, ruining the entire sheet, instantly dampening your creative enthusiasm. There are all sorts of "tricks" floating around the internet—saw blades, utility knives, even heating wires... They all sound simple, but which one is truly safe, efficient, and produces the professional-grade, smooth edges you crave?
Don't let cutting get in the way of your creativity! Next, we'll explore how to choose and master the best acrylic cutting method for your project, your existing tools, and the desired end result.

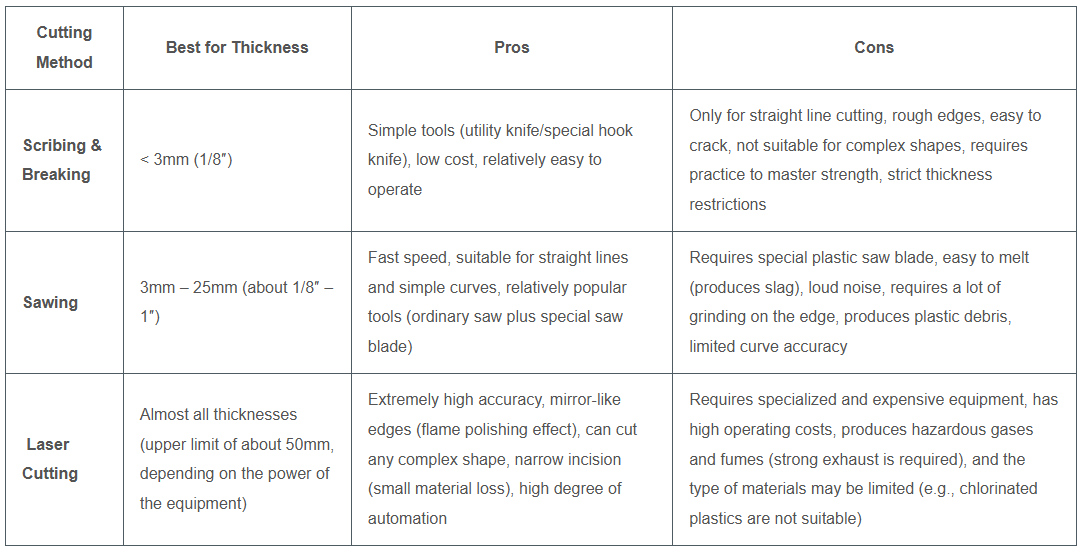

Comparison of the Pros and Cons of Acrylic Sheet Cutting Methods
You will acquire the following core knowledge and skills:
The Foundation of Safety and Precision: Understand the key preparatory steps before cutting to ensure safe operation and lay the foundation for precise cutting.
Thin Sheet Straight Cutting Techniques: Master the core operating principles of the "score and break" method, learn to easily separate sheets thinner than 3mm, and identify common causes of errors.
Choosing Tools for Thick Sheet and Curved Cutting: Learn how to choose the right saw blade type and utilize key cooling techniques for thicker sheets and simple curves.
The Ultimate Solution for Complex Cutting: Discover why laser cutting achieves unparalleled precision, produces perfectly polished edges, and easily handles any complex pattern.
Completely Eliminate the Risk of Cracks: Gain insight into the root causes of acrylic cracking caused by DIY cutting and master the only cutting method that can 100% avoid micro-cracks.
Practical Analysis of Custom Case Panels: Using real-world examples, compare the limitations of DIY methods with the superior performance of laser cutting for complex cutouts and detailed logos. Acrylic Cutting FAQs: Get key answers on tool selection, laser processing odor control, cost-benefit analysis, and material compatibility.
Now, let's delve deeper into the details of each method to find the ideal cutting solution for your acrylic creations.
Preparing for Cutting
Safety
Goggles are essential: Drilling, sanding, cutting, and even marking acrylic can generate high-speed flying particles or debris that can be harmful to your eyes. Therefore, wear goggles at all times.
Cut-resistant gloves are recommended: Gloves are primarily designed to protect against sharp edges when holding and securing the sheet, and handling the cut parts. When choosing gloves, strike a balance between protection and dexterity.
Workpiece Handling
Securely secure with clamps: Any movement of the sheet during processing can cause cutting errors, tool slippage, and even personal injury. Use sufficient clamps of the correct size (such as G-clamps and F-clamps) to secure the acrylic sheet securely to the work surface. Leave the protective film on until processing is complete: Acrylic surfaces are extremely susceptible to scratches. The protective film provides a perfect barrier. Ensure all processing steps (including cutting, drilling, and sanding) are complete before removing the protective film.
Precise Marking
Clearly mark the protective film surface: We recommend using a permanent marker or fine-point pencil to firmly mark the desired cut lines or positioning points. Clear marking ensures accuracy without damaging the underlying sheet, and allows the protective film to continue to provide its protective function.

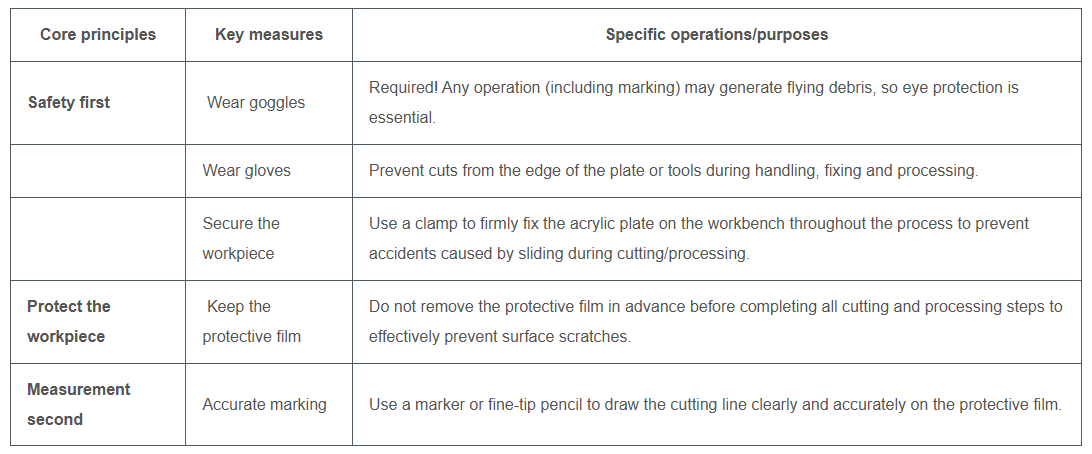

Summary: The Three Key Elements of Preparation
Proper preparation is the foundation of successful acrylic processing, and its importance should never be underestimated:
Safety First: Wear safety glasses and gloves throughout the process, and ensure the workpiece is securely secured.
Protection Second: Leave the protective film intact until all processing steps are complete.
Precision Third: Mark the protective film clearly and accurately.
Remember: Measuring errors can be corrected, but safety is not a second chance. The vast majority of accidents are caused by negligent preparation.

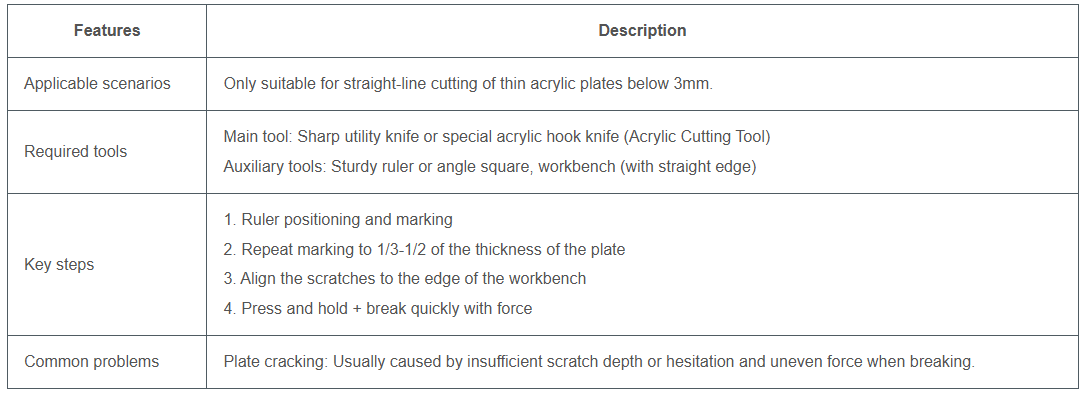

Custom Acrylic Cutting Method 1: Score and Press
For straight-line cuts in thin acrylic sheets (less than 3mm), the "score and snap" method is an efficient and cost-effective solution. This method creates a precisely controlled stress concentration line, resulting in a clean, sharp separation.
Positioning and Fixing
Place the acrylic sheet on a stable work surface. Using a sturdy straightedge or angle square, position it closely along the intended cut line and secure it with a clamp to prevent any movement.
Precise Score
Holding a utility knife or hook knife perpendicular to the sheet, score the edge of the ruler firmly and evenly, repeatedly 5-10 times. The goal is to create a continuous groove that is 1/3 to 1/2 the thickness of the sheet. Score marks that are too shallow are the primary cause of subsequent fracture failure
Edge Alignment
Precisely align the score line with the edge of the work surface, ensuring that the groove aligns perfectly with the edge to achieve the perfect stress concentration at the moment of snapping.
Quick Snap
With one hand, firmly press down on the sheet's surface while with the other hand, apply firm, downward pressure to the free end. The action should be sharp and decisive, avoiding hesitation or slow application of force.
Common Problems and Solutions
Problem: The fracture line deviates from the scratch mark or the cross section is uneven.
Causes and Solutions:
Insufficient scratch depth: Ensure the groove depth is at least 1/3 of the plate thickness.
Hesitation in breaking: Use instantaneous force and avoid repeated attempts.
Alignment Error: Ensure the scratch line is precisely aligned with the table edge and the support point is correct.
Insecure Fixing: Ensure the plate is clamped securely before processing to prevent shifting.
The essence of the scratch-and-break method is "deep scratch, fast break." By creating a sufficiently deep stress guide line and combining it with instantaneous force, perfectly straight cuts can be easily achieved in thin acrylic sheets.

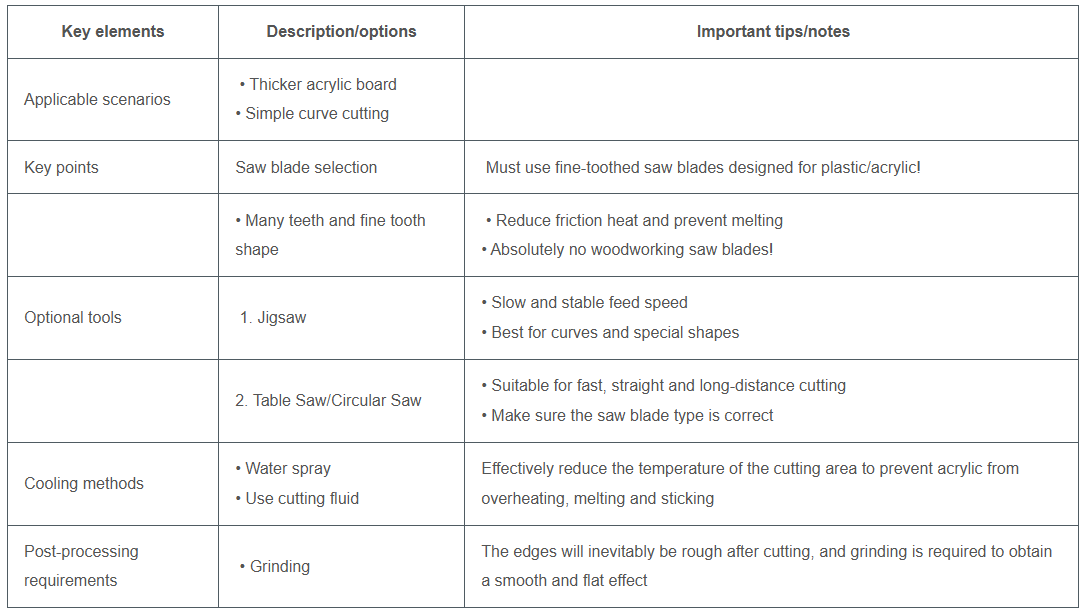

Custom Acrylic Cutting Method 2: Sawing
For cutting thick acrylic sheets or simple curves, sawing is undoubtedly one of the most versatile and efficient solutions. However, this method inherently presents a contradiction: while seemingly simple, improper tool selection and use can easily lead to cracking or rough edges. How can one master this "double-edged sword"?
1. Application Scenarios
This method is primarily suitable for cutting thick acrylic sheets or working with simple curves. For long, straight cuts, a table saw or circular saw with a dedicated blade is recommended for greater efficiency.
2. Key Element: Saw Blade Selection
A fine-tooth saw blade designed specifically for plastic/acrylic must be used. Its dense tooth pattern effectively reduces frictional heat.
Do not use woodworking saw blades. The excessive heat generated by these saws can cause the acrylic to melt, stick to the blade, and produce harmful fumes, which can easily lead to sheet failure and pose a safety hazard.
3. Tools and Operation
Jigsaw: The preferred choice for cutting curves. Maintain a constant, slow feed speed during operation and ensure the workpiece is securely clamped.
Table saw/circular saw: Suitable for long, straight cuts. Circular saws require a guide rail, while table saws require a backing rail. Both require specialized acrylic blades.
4. Cooling Technology
Using water spray or cutting fluid to cool the saw during the cutting process is crucial for controlling frictional heat and preventing material melting.
5. Post-Processing
Sawed edges are typically rough, requiring subsequent, gradual, and fine sanding to restore the acrylic's smooth, translucent texture.
The key to successful acrylic sawing lies in selecting a specialized, fine-toothed saw blade, strictly controlling cutting speed and temperature, and planning the necessary sanding steps.

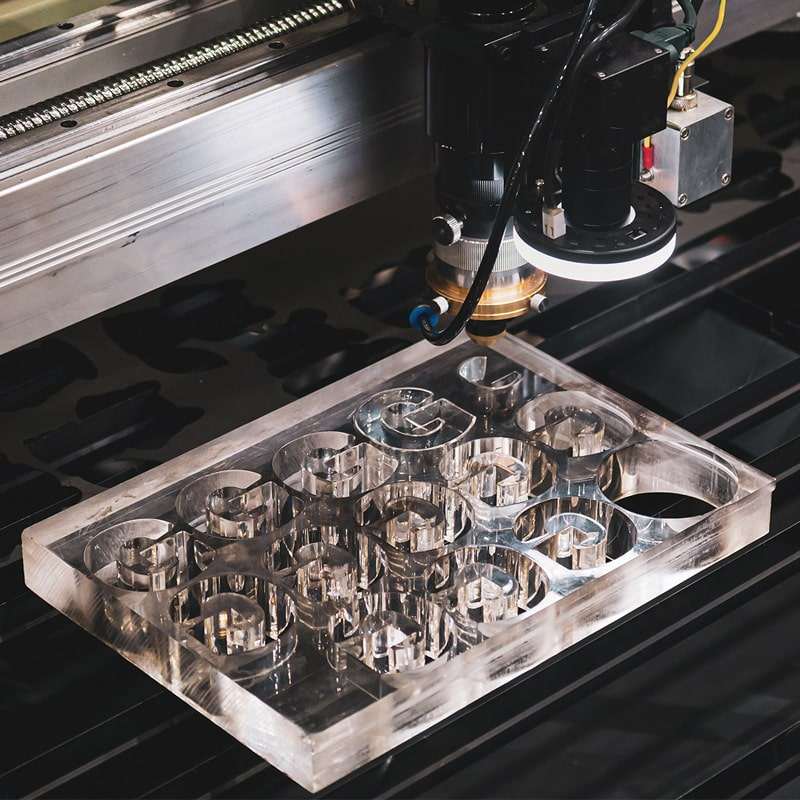

The Ultimate Solution: Laser Cutting
Where traditional acrylic processing methods struggle to balance precision, efficiency, and complexity, laser cutting, with its non-contact, "cold working" nature, offers a generational advantage, becoming the inevitable choice for modern high-end manufacturing.
1. Extreme Precision and Accurate Reproduction
Under precise computer control, a high-energy laser beam strictly follows the path pre-set in the CAD software. Its precision reaches micron levels, far exceeding any manual or traditional machining methods. Whether it's complex patterns or high-precision parts, every cut achieves perfect dimensional reproduction, meeting the demanding requirements of precision models and rigorous assembly.
2. Smooth Edges, Ready-to-Use
The unique feature of laser cutting lies in its "thermal polishing": the high-temperature laser instantly melts the acrylic and rapidly solidifies it, naturally creating a crystal-smooth, transparent surface. This process creates a "flame-polished" effect on the cut edge, often eliminating the need for further polishing and allowing for immediate use. This not only enhances aesthetics but also significantly reduces processing time.
3. Unrestricted Creativity, Free Complexity
Laser cutting completely liberates imagination from the constraints of physical tools. Its processing capabilities are entirely dependent on the complexity of the digital design (CAD file), making it easy to achieve fine features that are difficult to achieve with traditional methods, such as hairline-thin (<1mm) fonts, complex geometric cutouts, and internal nesting structures. This opens up endless possibilities for personalized customization and the production of complex structural parts.
4. Non-contact Processing, Stress-Free
As a non-contact process, the laser beam does not physically impact the material, fundamentally eliminating the mechanical stress and vibration caused by traditional sawing and drilling. This ensures a microcrack-free and edge-free process, perfectly preserving the structural integrity of acrylic sheets. It is particularly suitable for the non-destructive cutting of thin sheets and complex precision components.
How do you cut circles or complex shapes?
In acrylic processing, cutting perfect circles or complex curves has always been an insurmountable challenge with traditional manual operations.
1. Limitations of Manual Cutting
Using a jigsaw or handheld rotary tool to create curved shapes presents multiple challenges:
Difficulties in maintaining precise control: Maintaining the tool vertically and accurately following the marked line requires exceptional skill; even the slightest hand shake can cause distortion.
Unsatisfactory edge quality: The cut surface often exhibits jagged edges and burrs, circles can easily become elliptical, and the cross-section is rough and uneven.
High post-processing costs: Extensive grinding and finishing are required to achieve a relatively smooth edge, and the results depend on operator experience.
2. Advantages of Laser Cutting
Laser technology fundamentally solves the challenges of machining complex shapes:
Digital Precision Control: The CNC system strictly adheres to the design drawing, converting geometric shapes into precise coordinate paths.
High Quality Consistency: Unaffected by human factors, the precision of cut circles and straight lines remains consistent, resulting in smooth, even edges.
No Cot Premium for Complexity: The cost of producing complex cutouts and intricate patterns is comparable to that of simple contours, truly enabling design freedom.
While manual cutting relies entirely on operator skill, laser cutting ensures precision and consistency through a digital process. For acrylic processing requiring high precision and complex shapes, laser technology is not only an ideal choice but also a reliable guarantee for achieving creative designs.
How to effectively prevent cracking during acrylic cutting?
Cracking is a common problem during DIY cutting, primarily due to improper operation or incorrect tool selection. Below is a complete guide to preventing cracking, from causes to solutions:
I. Analysis of Common Causes of Cracking
Insufficient Scratch Depth: Pre-cut scratches that are too shallow can lead to uneven stress distribution, resulting in irregular cracks during fracture.
Improper Force Application: Manual force applied in an inaccurate direction or sudden changes in force can easily cause edge chipping or hidden cracks.
Incorrect Tool Selection: Using a saw blade with excessively large pitch or a blunted tool can tear the material rather than cut it smoothly.
Excessive Processing Speed: High-speed friction causes localized overheating, which can lead to stress concentrations in vulnerable areas of the material and cause microcracks.
II. Key Preventative Measures
Ensure Scratch Depth: The pre-cut depth should reach at least one-third of the material thickness, and a guide tool should be used to ensure linear accuracy.
Optimize force application: Use a smooth and even force technique and use a clamp to prevent human error.
Use professional tools: Choose a fine-tooth saw blade (such as a high-TPI metal cutting blade) based on the material's characteristics and maintain a sharp edge.
Control processing temperature: Appropriately reduce the feed rate and use coolant to effectively distribute thermal stress.
III. The Ultimate Solution: Laser Cutting
Laser cutting uses a non-contact heat-melting principle to completely avoid mechanical stress and fundamentally eliminate microcracks. This technology is particularly suitable for machining precision parts and brittle materials, achieving perfect cutting edges while ensuring a near-100% yield. However, it should be noted that laser cutting has a high initial investment and is restricted for use with chlorine-containing materials such as PVC.
For general DIY projects, standardized operation can significantly reduce the risk of cracking. However, for applications requiring stringent precision, laser cutting remains the most reliable solution.
Project: Customized Acrylic Side Panels for PC Cases
Client Requirements: Customize an acrylic side panel for a PC case. The core requirements were to achieve a complex honeycomb-shaped hollow heat dissipation structure and engrave a delicate company logo. The processing solution needed to meet both high precision and high edge finish requirements.
Limitations of Traditional Manual Solutions
The client had attempted manual processes such as scribing and sawing, but faced insurmountable obstacles in the following areas:
Complex structures could not be achieved: The densely packed sharp corners and subtle curves within the honeycomb cells could not be accurately formed using hand tools;
Material damage was difficult to control: Acrylic easily melted or even chipped within the thin honeycomb walls during sawing;
Fine features could not be preserved: The delicate strokes and complex contours of the company logo were completely lost during manual processing;
Post-processing finishing was costly: Even if a finished product was manageable, extensive polishing and repair of burrs and defects would be required, resulting in unsatisfactory results and extremely low overall efficiency.
Wsrcnc's Professional Solution:
Convenient online starting point: Customers upload their designed CAD files to our online laser cutting service platform. Instant and Transparent Quotes: Our system automatically analyzes your files and instantly generates accurate laser cutting prices, ensuring high efficiency and transparency.
High-Precision Manufacturing: Our professional laser cutting equipment enables processing in minutes. We perfectly reproduce complex honeycomb holes and intricate logos with smooth, flat edges, no melting or edge collapse, and meet "install-and-use" quality standards.
Perfect Delivery: Customers receive high-quality laser-cut parts that meet their design requirements without any additional processing.
Wsrcnc Professional Solutions
We provide efficient and accurate one-stop laser cutting services:
Easy Online Startup: Simply upload your completed CAD file to our online laser cutting platform to start your project.
Instant and Transparent Quotes: Our system automatically analyzes your design files and provides clear and accurate cost estimates within a short time, ensuring transparency throughout the entire process.
High-Precision Manufacturing Guarantee: Our professional-grade laser cutting equipment enables us to perfectly create complex honeycomb holes and intricate logos in minutes. Cut edges are smooth and neat, with no melting or edge collapse, ensuring "install-and-use" quality standards. Ready-to-use finished product: You will receive a high-quality finished product that meets your design expectations, ready for assembly and use without any further processing.
1: Can I use a regular utility knife to cut acrylic?
While it is possible to cut acrylic sheets less than 2mm thick, regular knifes are inefficient and have poor edge quality.
Edges can easily become rough and uneven. We strongly recommend using a specialized acrylic hook cutter, which offers high cutting precision and smooth cuts, making it particularly suitable for thin sheet metal processing and significantly saving material and time costs.
2. Does laser cutting acrylic produce an odor?
The laser cutting process produces a certain pungent odor, which originates from trace chemicals released by the molten acrylic. To ensure operational safety and environmental friendliness, all our equipment is equipped with professional-grade ventilation and high-efficiency filtration systems to quickly eliminate odors and filter out harmful substances, ensuring a clean and safe processing environment.
3. Is laser cutting expensive?
For single pieces or small batches of complex parts, laser cutting offers a very competitive overall cost. This technology produces high-precision, smooth-edged products in a single pass, eliminating subsequent polishing steps and significantly saving labor and time. You can submit your design through our online platform and receive an instant, transparent quote to experience its cost advantages.
4. Are all types of acrylic suitable for laser cutting?
Both cast and extruded acrylic are suitable for laser cutting. Cast acrylic offers smoother cut edges and is suitable for high-precision applications, while extruded acrylic offers a more affordable option. We can recommend the right type based on your needs to ensure optimal processing results.
