One-Stop Custom Sheet Metal Fabrication Services
Sheet Metal Fabrication is utilized across aerospace, construction, and electronics industries for producing durable structural components. Typical parts include:
- Control panels and enclosures
- HVAC ductwork systems
- Machine protection guards
- Food processing equipment
- Architectural facade elements
- Industrial storage containers
Start A New Sheet Metal Fabrication Quote
Start to Upload Your Files
Drag and drop file here or click the button below or
STEP | STP I SLDPRT I IPT I PRT I SAT FLES
STEP | STP I SLDPRT I IPT I PRT I SAT FLES
All uploads are secure and confidential.
Service
-
Sheet Metal Laser CuttingUtilizes high-power lasers to cut complex shapes with ±0.1mm precision, ideal for thin to medium gauges (0.5-20mm). Delivers clean, burr-free edges (Ra1.6μm).Perfect for automotive panels and electronic enclosures. -
Sheet Metal BendingForms precise angles (up to ±0.5°) using press brakes with CNC-controlled backgauges for repeatability. Handles materials from aluminum to stainless steel (0.5-12mm thickness). -
Sheet Metal StampingProduces high-volume parts like brackets and clips via dies with ±0.05mm tolerance. Combines punching, blanking, and coining in one cycle for cost efficiency. Widely used in appliances and automotive assemblies. -
Sheet Metal WeldingJoins components with TIG/MIG/spot welding for structural integrity (seam strength ≥90% base material). Ensures minimal distortion and airtight seams for tanks or enclosures. Critical in construction and transportation industries.
Our Powerful Sheet Metal Fabrication Part
Delivering precision sheet metal solutions from prototype to production, we process stainless steel, aluminum, and galvanized steel (0.5-12mm thickness) with laser cutting (±0.1mm accuracy), punching, and bending. Our ISO-certified facility supports custom enclosures, chassis, and brackets with powder coating, anodizing, or plating finishes. Request a DFM analysis for your next sheet metal project.
-

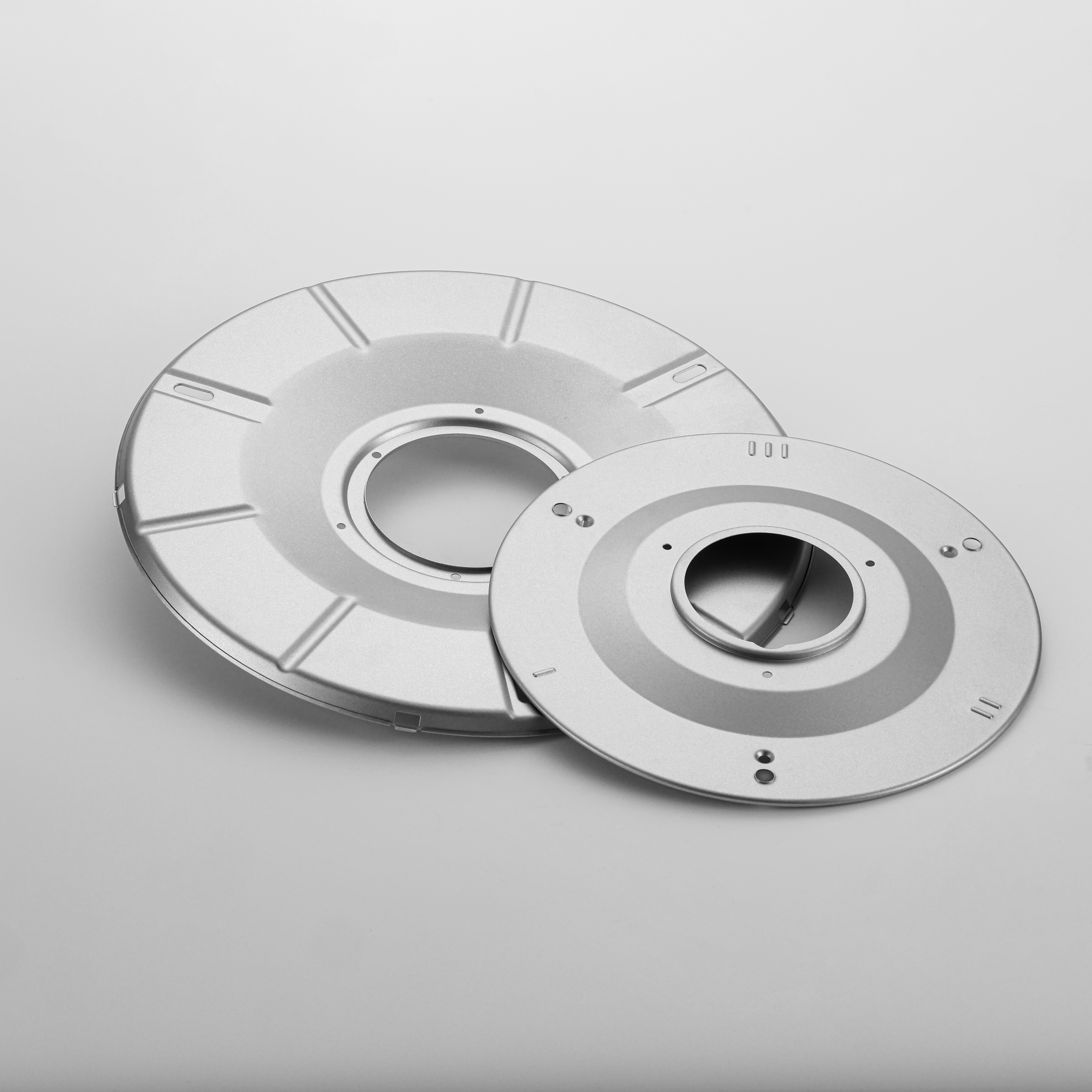

Aluminum Sheet Metal Circle Part
10+ Years of Sheet Metal Fabrication ServicesTolerances as tight as ±0.0012 in.（0.03mm）Part size: ≤3000MM*1500MMLead times as fast as 3 working days -

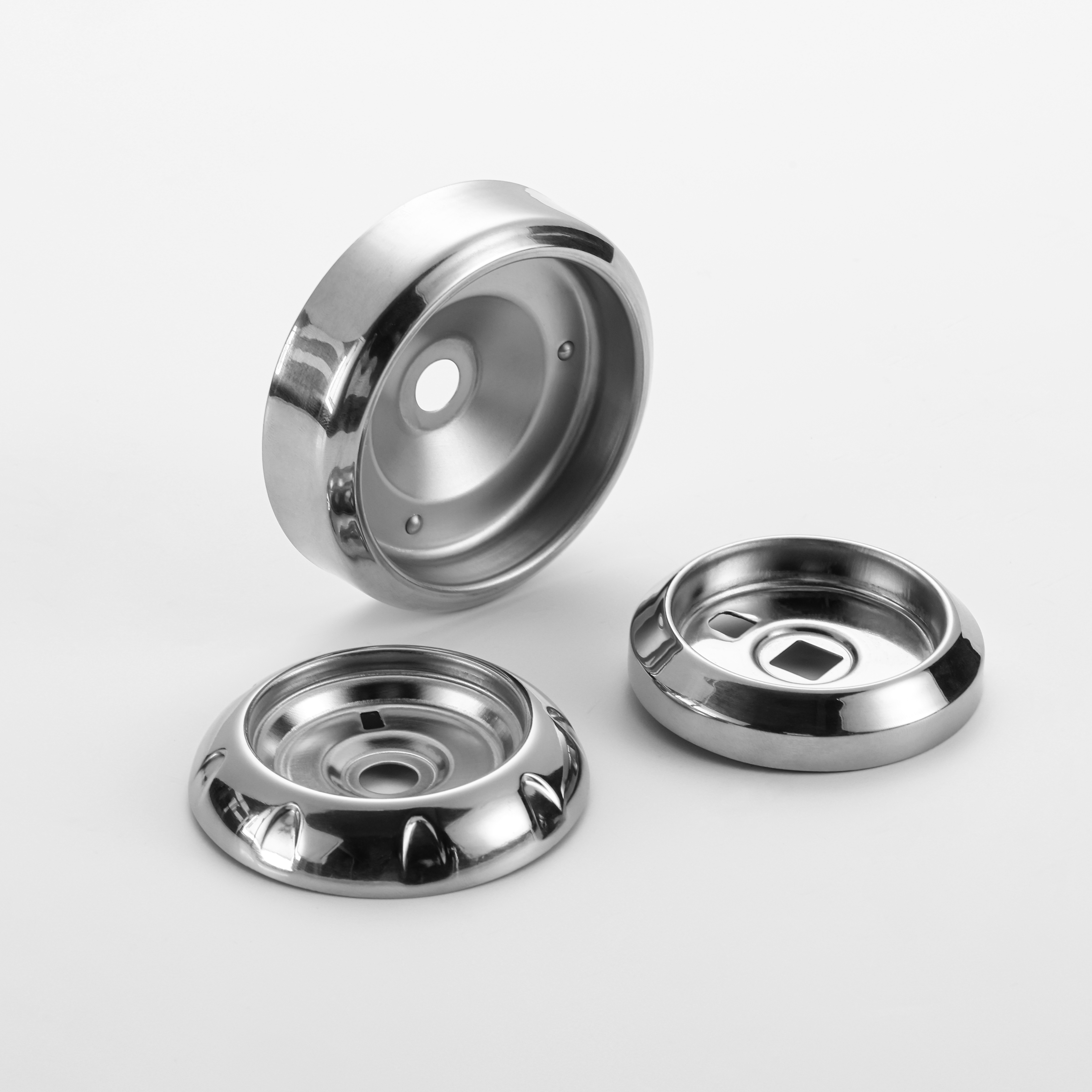

Stainless Steel Sheet Metal Part10+ Years of Sheet Metal Fabrication ServicesTolerances as tight as ±0.0012 in.（0.03mm）Part size: ≤3000MM*1500MMLead times as fast as 3 working days -

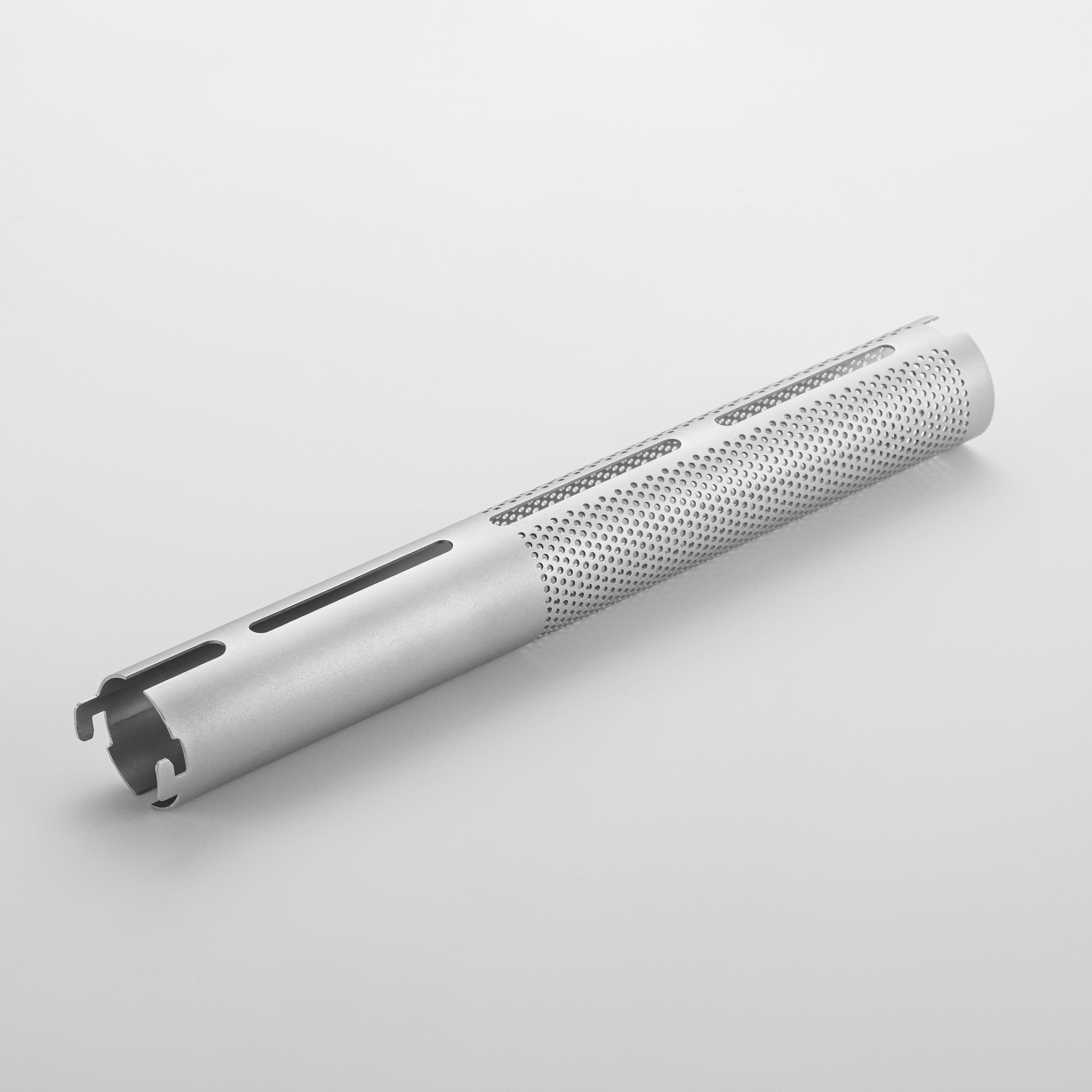

Aluminum Sheet Metal Tube Part10+ Years of Sheet Metal Fabrication ServicesTolerances as tight as ±0.0012 in.（0.03mm）Part size: ≤3000MM*1500MMLead times as fast as 3 working days
Sheet Metal Fabrication Materials
Processing 1.0-12mm thickness metals from aluminum 5052 to galvanized steel SGCC with ±0.1mm tolerance. Our ISO 9001-certified facility handles perforated, embossed, and powder-coated sheets for enclosures, ducts, and architectural components.
Metals
Ultra-Lightweight, Highly corrosion-resistant, Good thermal conductivity, Highly formable, perfect for complex Sheet Bending and Shaping.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Golden aesthetic, good machinability, moderate corrosion resistance, often used for decorative hardware.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Superior wear resistance, seawater corrosion resistance, classic metallic luster, commonly cast.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Extremely lightweight (67% aluminum density), good vibration damping, requires surface treatment.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Excellent malleability, corrosion-resistant, decorative finishes, suitable for intricate stamped panels.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
High electrical conductivity, soft yet work-hardening, requires annealing during multi-stage forming.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Cost-effective formability, high strength-to-weight ratio, requires anti-rust coating for exposed edges.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Corrosion-resistant, retains strength after welding, maintains integrity in harsh environments.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Plastics
Fast-flowing melt, low shrinkage (0.4-0.7%), requires pre-drying (80°C/4h), ideal for automotive dashboards and consumer electronics housings.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
High melt viscosity (300-350°C processing), moisture-sensitive (0.02% max), optical-grade clarity for LED lenses and medical device components.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
High mold temperature (60-80°C) reduces internal stress, low warpage, replaces glass in automotive taillights and cosmetic packaging.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Crystallization-sensitive cooling (80-120°C mold), high dimensional stability, precision gears and fuel system valves.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Moisture absorption (2.5-3.5%) requires post-molding annealing, self-lubricating bushings and automotive cable ties.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Low melt strength (LDPE: 160-240°C), high flow rate for thin-wall containers and chemical-resistant pipeline fittings.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Extreme processing temps (380-400°C), low shrinkage (0.1-0.3%), aerospace bushings and surgical sterilization trays.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Low density (0.9g/cm³), living hinge capability, disposable syringes and automotive HVAC ducts.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Non-melt flow (sintering required), ultra-low friction coatings for semiconductor seals and non-stick cookware linings.
Price: $0
Lead Time:
Tolerances:
Max part size:
Price: $0
Lead Time:
Tolerances:
Max part size:
Sheet Metal Fabrication Tolerance Standard
Adhering to the ISO 2768-m standard enables our custom sheet metal fabrication service to consistently achieve precise part manufacturability, minimizing defects and production inefficiencies.
Sheet Metal Fabrication Surface Finishes
Looking for the right finish? Choose from 20+ options to meet both your functional and aesthetic needs.
-
As MachinedDescription: Standard finish with surface roughness of 3.2 μm (126 μin), removes sharp edges and deburrs parts cleanly. Key Use: Functional parts requiring no post-processing (e.g., brackets, gears). Process Tolerance: Dimensional ±0.1 mm, Ra 3.2±0.5 μm Process Specifications: ISO 2768-m standard, burr height ≤0.05 mm
-
AnodizingDescription: Electrochemical oxide layer for corrosion resistance and aesthetics. Process Compatibility: Post-machining surface treatment Key Use: Aerospace components, consumer electronics (e.g., phone frames). Process Tolerance: Coating thickness 10-25 μm±2 μm, color consistency ΔE≤1.5 Process Specifications: MIL-A-8625 or ISO 7599, sealing pH 5.5-6.5
-
AlodineDescription: Chemical film for corrosion protection and paint adhesion. Process Compatibility: Post-cleaning chemical immersion Key Use: Aviation and automotive electrical housings. Process Tolerance: Film thickness 0.5-3 μm, visual uniformity Process Specifications: Immersion time 3-10 min, bath temp. 20-30℃
-
Black OxideDescription: Thin magnetite layer for corrosion resistance and reduced glare. Process Compatibility: Post-machining chemical treatment Key Use: Tools, firearms, automotive fasteners. Process Tolerance: Coating thickness 0.5-1.5 μm, salt spray ≥24 hrs Process Specifications: Alkaline bath pH 13-14, process time 5-30 min
-
BrushingDescription: Linear abrasive finish for decorative texture. Process Compatibility: Manual/CNC abrasive belts Key Use: Appliance panels, architectural trims. Process Tolerance: Texture depth 0.05-0.2 mm, angle deviation ≤5° Process Specifications: Abrasive belt grit 80-240, feed speed 10-30 m/min
-
EtchingDescription: Chemical/mechanical removal for micro-texturing or marking. Process Compatibility: Laser/chemical masking Key Use: Circuit boards, decorative logos. Process Tolerance: Etch depth 0.01-0.5 mm±5%, alignment ±0.1 mm Process Specifications: Etchant concentration 10-30%, laser power 20-100 W
-
Electroless PlatingDescription: Uniform metal coating (e.g., nickel) without electricity. Process Compatibility: Chemical bath deposition Key Use: Wear-resistant industrial valves, connectors. Process Tolerance: Coating thickness 5-50 μm±5%, porosity ≤5/cm² Process Specifications: Bath temp. 85-95℃, pH 4.5-5.5
-
ElectroplatingDescription: Electrochemical metal coating (e.g., chrome, zinc) for durability. Process Compatibility: Post-machining electrodeposition Key Use: Automotive trim, jewelry. Process Tolerance: Coating thickness 5-25 μm±2 μm, adhesion ≥4B (ASTM B571) Process Specifications: Current density 1-10 A/dm², bath temp. 40-60℃
-
ElectrophoreticDescription: Polymer coating via electric field for corrosion resistance. Process Compatibility: Post-cleaning immersion Key Use: Automotive frames, HVAC components. Process Tolerance: Coating thickness 15-30 μm±3 μm, edge coverage ≥80% Process Specifications: Voltage 50-300 V, cure 160-200℃×20 min
-
GrindingDescription: Precision abrasive finish for tight tolerances. Process Compatibility: Surface/cylindrical grinding Key Use: Bearing races, hydraulic shafts. Process Tolerance: Dimensional ±0.005 mm, Ra 0.4-0.8 μm Process Specifications: Wheel grit 60-120, coolant flow 5-20 L/min
-
Heat TreatmentDescription: Thermal process to alter material hardness/toughness. Process Compatibility: Post-machining quenching/tempering Key Use: Gears, cutting tools. Process Tolerance: Hardness HRC 45-60±2, distortion ≤0.1% Process Specifications: Quench temp. 800-1000℃, temper time 1-4 hrs
-
KnurlingDescription: Diamond or linear pattern for improved grip. Process Compatibility: CNC lathe rolling Key Use: Handles, adjustment knobs. Process Tolerance: Pattern depth 0.2-0.5 mm, pitch ±0.05 mm Process Specifications: Roller pressure 200-500 N, feed 10-50 mm/min
-
Laser EngravingDescription: Permanent marking via laser ablation. Process Compatibility: Post-processing laser systems Materials: Metals, plastics, wood Key Use: Serial numbers, branding on industrial parts.
-
OvermoldingDescription: Molding soft material (TPU/silicone) over rigid inserts. Process Compatibility: Injection molding Materials: Plastics, metals (as inserts) Key Use: Ergonomic handles, waterproof seals. Process Tolerance: Overmold thickness 1-5 mm±0.2 mm, bond strength ≥5 MPa Process Specifications: Injection pressure >5 MPa, mold temp. 40-80℃
-
PolishingDescription: Mirror-like finish via abrasive compounds. Process Compatibility: Manual/robotic buffing Key Use: Medical instruments, luxury fixtures. Process Tolerance: Ra 0.025-0.1 μm, gloss ≥90 GU Process Specifications: Wheel speed 1000-3000 rpm, compound grit 2000-5000
-
PassivationDescription: Acid treatment to remove free iron and enhance corrosion resistance. Process Compatibility: Post-cleaning chemical immersion Key Use: Surgical tools, food processing equipment. Process Tolerance: Film thickness 0.001-0.01 μm, salt spray ≥96 hrs Process Specifications: Nitric acid 20-50%, process time 20-60 min
-
Powder CoatingDescription: Electrostatic polymer powder cured into durable film. Process Compatibility: Post-cleaning spray and bake Key Use: Outdoor furniture, automotive wheels. Process Tolerance: Coating thickness 60-120 μm±10 μm, ΔE≤1.0 Process Specifications: Voltage 30-90 kV, cure 180-200℃×15 min
-
PhosphatingDescription: Phosphate layer for lubrication and paint adhesion. Process Compatibility: Chemical immersion Key Use: Engine components, firearm parts. Process Tolerance: Coating weight 2-5 g/m², crystal size ≤5 μm Process Specifications: Bath pH 2-4, process temp. 40-70℃
-
PaintingDescription: Liquid coating for color and protection. Process Compatibility: Spraying/dipping Materials: Metals, plastics Key Use: Consumer electronics, automotive body panels. Process Tolerance: Coating thickness 20-50 μm±5 μm, adhesion ≥3B (ASTM D3359) Process Specifications: Spray pressure 0.3-0.6 MPa, cure 80-120℃×30 min
-
Sand blastingDescription: Abrasive jet finish for uniform matte texture. Process Compatibility: Post-machining blasting Materials: Metals, glass, stone Key Use: Architectural facades, engine blocks. Process Tolerance: Ra 1.6-6.3 μm, coverage ≥95% Process Specifications: Grit size 80-120, air pressure 0.4-0.7 MPa
Start Your
CNC Machining Project
CNC Machining Project
Upload a CAD file to receive instantly quotes, lead time, and DFM details for your CNC components. Specializing in CNC machining for metals and plastics, we provide adaptive production and shipping solutions to align with your product development needs.
What is Sheet Metal Fabrication?How Does Sheet Metal Fabrication Work?
Sheet metal fabrication is a manufacturing process that transforms flat metal sheets into functional parts or structures through cutting, bending, forming, and assembly. Common materials include stainless steel, aluminum, copper, and galvanized steel, with thicknesses ranging from thin foils (0.1 mm) to heavy plates (6 mm+). This method is widely used to produce enclosures, brackets, chassis, and HVAC components for industries like automotive, aerospace, electronics, and construction.
Design & Prototyping:A CAD model defines part dimensions, bend radii, and tolerances.Prototyping (via laser cutting or CNC punching) validates the design before mass production.
Material Preparation:Sheets are cut to size using laser cutting, waterjet, or shearing machines for precision edges.
Forming Processes:Bending: Press brakes or folding machines create angles and flanges with CNC-controlled accuracy.
Stamping: Dies and punches shape features like ribs, louvers, or embossed logos.Rolling: Curved surfaces are formed by passing sheets through rollers.
Assembly:Parts are joined via welding (TIG, MIG), riveting, or adhesive bonding.Fasteners (screws, nuts) may be added for modular designs.
Finishing:Surface treatments like powder coating, anodizing, or electroplating enhance corrosion resistance and aesthetics.
-
CNC MachiningWe specialize in manufacturing custom prototypes and end-use parts with precise and complex designs through CNC milling,CNC turning, and CNC precision machining. -
Sheet Metal FabricationWe expert in the flexible manufacture of sheet metal prototypes and precision parts through laser cutting, stamping, metal bending, metal welding, riveting, embossing, flanging and tapping, chamfering and other processes. -
Injection Molding ServicesWorldsoaring provides plastic injection molding, rapid and production tooling, overmolding, and insert molding service. No MOQ required, all while maintaining high-quality and precision molding products. -
More ServicesSLA, HP MJF, SLS, SLM technologies for functional prototyping and low-volume production. We manufacture 3d printed parts at competitive price. -
SolutionsSLA, HP MJF, SLS, SLM technologies for functional prototyping and low-volume production. We manufacture 3d printed parts at competitive price.
Success Stories of Sheet Metal Fabrication Projects
FAQs
What are the two different ways of metal cutting?
Industrial metal cutting primarily employs two advanced systems: CNC laser cutters (thermal-based precision cutting) and waterjet cutters
(mechanical erosion process). Each technology offers unique advantages - lasers provide exceptional edge quality while waterjets enable cold-
cutting of sensitive materials.
What are the three cutting procedures?
Modern manufacturing utilizes three primary metal cutting techniques: laser cutting (thermal process), mechanical blade cutting (shearing force),
and abrasive waterjet cutting (erosion mechanism). These methods involve distinct physical interactions including localized melting, plastic
deformation, and particle erosion phenomena.
Which cutting method is better?
Plasma cutting offers superior efficiency and speed for most applications. However, laser cutting demonstrates faster processing speeds for materials
exceeding 0.25" (6.35mm) thickness, while plasma maintains a speed advantage over oxy-fuel cutting for materials under 2" (50mm).
